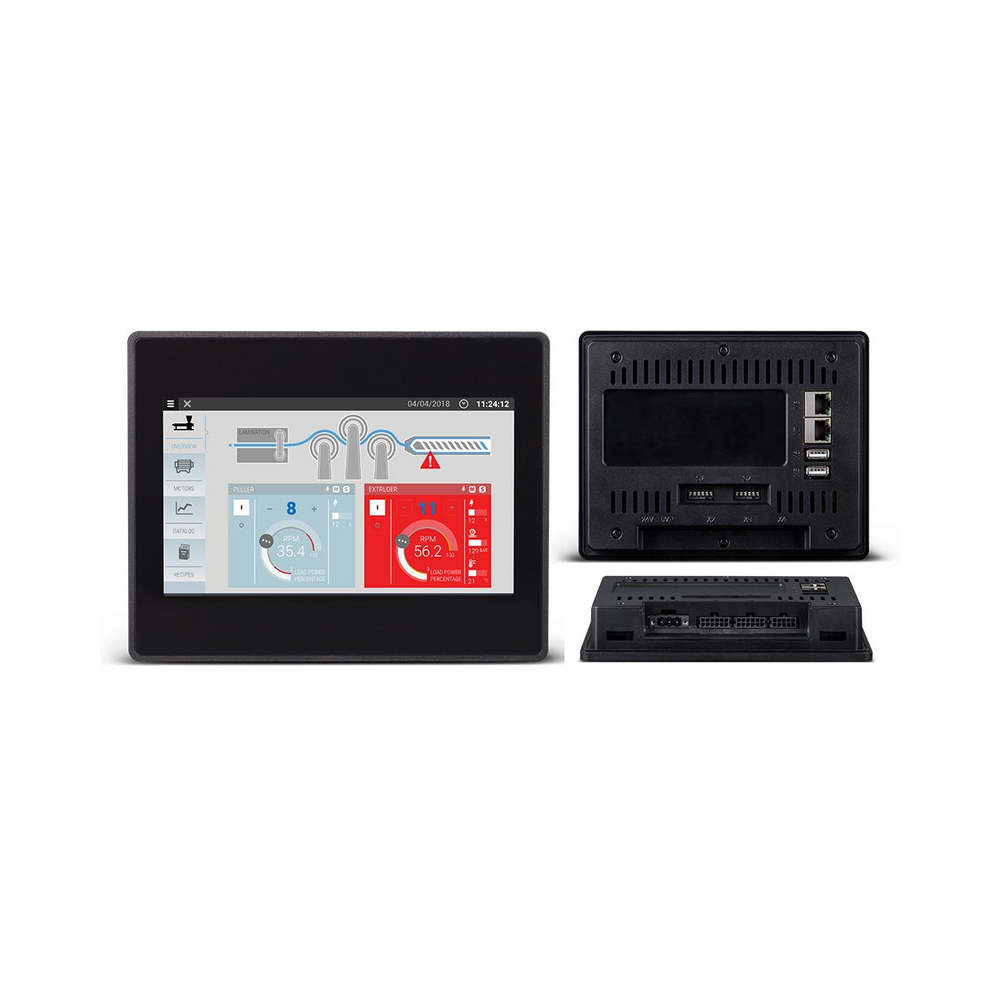

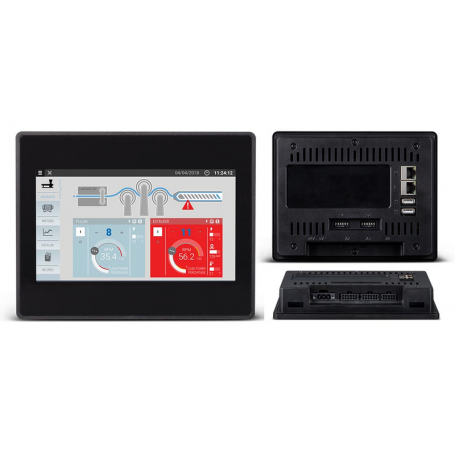

Exor eSMART107, Industrial Touch Panel, Dual Core, 7", 800x480, LAN, USB

eSMART107

Exor International S.p.A

ESMA107U301

616100ESMART107U301

New

7” TFT color with touchscreen. 2 Ethernet ports, 2 CAN ports, 4 serial ports, 2 USB ports. JMobile runtime.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals DIN EN 61000-6-4, DIN EN 61000-6-2
Length 34.00 Millimeter
Display size 7"
Width 187.00 Millimeter
Portection rating IP66 (Front) / IP20 (Rear)
Voltage (typical) 24.00 Volt
Resolution 800 x 480
Height 147.00 Millimeter
Touchscreen Resistive
Min. ambient temperature 0.00 Celsius
Operating system Linux RT
Brightness (cd/m²) 200
Voltage Range (Min.) 10.00 Volt
Max. ambient temperature 50.00 Celsius
Voltage Range (Max.) 32.00 Volt
Current consumption max. 0.30 Ampere
CPU ARM Cortex-A9 dual core 800 MHz
RAM 1.00 Gigabyte
Memory / Flash 4.00 Gigabyte
Ethernet interfaces 2 (1 x 10/100/1000, 1 x 10/100)
USB interfaces 2 (Host V2.0)
Serial interfaces 2 (RS-232), 2 (RS-422/RS-485 isolated), 2 (CAN 2.0b isolated)
JMobile usable? Yes

More info

The eSMART series of products combine the power of JMobile - the software inside X Platform with an outstandingly robust design.

With very specific applications in mind we have stripped down the eSMART to only the essential components and have created a truly class leading product.

Stripped down does not mean that the product is not robust. In fact it maintains a IP66 protection rating for the front of the unit and is approved at cULus level. Pending we have DNV-GL, cULus Haz. Loc. and ATEX, allowing use in the most hazardous of environments.

Stripped down does not mean a cheap looking ugly product. The eSMART series is without doubt the most elegant in its class. No other fully plastic housed product can match the eSMART quality.

Stripped down does not mean reduction in high level functionality. Although the display is not at the incredible real life level of the eX700 series, the unique connectivity ability of JMobile - the software inside X Platform, allows the eSMART to communicate with a vast library of critical protocols as well as OPC UA standard and pub/sub* server and client.
