EXOR JSMART707, Industrie Touch Panel, 7", 1024x600, USB, LAN, PCAP, IP67

JSmart 707

Exor International S.p.A

JS707BB1U5P1

616100JSMART707

New

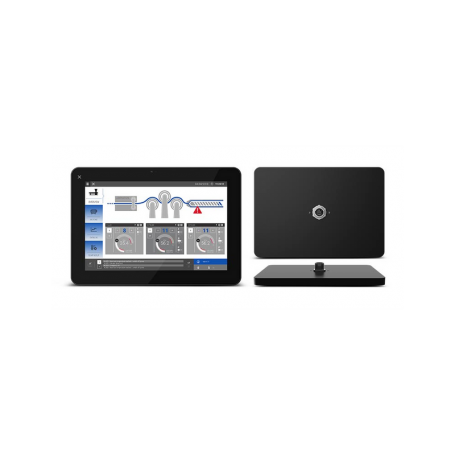

The EXOR JSmart707 is equipped with a high-resolution 7" display with multitouch functionality and a robust glass front. Complete IP protection, maximum installation flexibility, from mounting arm to simple M22 hole.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals CE, cUL, UL
Width 195.20 Millimeter
Display size 7"
Portection rating IP67
Height 131.60 Millimeter
Resolution 1024 x 600
Min. ambient temperature -20.00 Celsius
Touchscreen Multi-Touch
Depth 16.50 Millimeter
Max. ambient temperature 55.00 Celsius
Operating system Linux RT
Brightness (cd/m²) 400
CPU ARM Cortex-A9 dual core 800 MHz
RAM 1.00 Gigabyte
Memory / Flash 4.00 Gigabyte
Ethernet interfaces 1 (10/100 PoE)
USB interfaces 1 (Host V2.0)
Serial interfaces None
JMobile usable? Yes
