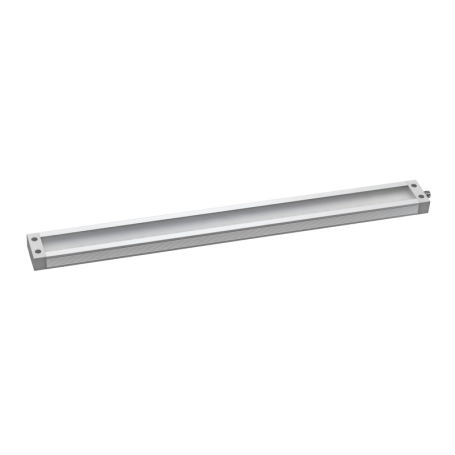

LED workplace luminaire APL1000 PMMAD-M12-57

LED APL 1000 PMMAD-M12-57

SANGEL® Systemtechnik GmbH

14020037

58583014020037

New

With the LED Workplace Luminaire we offer for the first time an efficient as well as ergonimic luminaire according to the protection type IP40. Instead of higher protection against spleshing water, an ergonimic Light is needed at work places. The coverage is penetrated with diffuse particles which prevent multiple shadows and provides fatigue-free working. The range includes different lengths from 850 to 3050mm. We achieve optimal working light and flexible connection with a light colour of 5700K and M12 connectors.

More details

on stock

1 Item

441.05 CHF inkl. MwSt.

Data sheet

Standards / Approvals DIN EN 61547 (EMV), DIN EN 60598-1, DIN EN 62471, DIN EN 55015 (EMV)
Luminaire type LED MACHINE LIGHTS
Length 1000.00 Millimeter
Portection rating IP40
Protection Class III
Min. ambient temperature -20.00 Celsius
Max. ambient temperature 45.00 Celsius
Dimension a:1050mm - b:1025mm
Power consumption (W) 64.00 Watt
Connection value 24.00 Volt
Housing anodised aluminium
Cover PMMA diffuse
Service life 60000.00 Hour
Colour temperature 5700.00 Kelvin
Colour rendering RA / CRI ≥ 80
Luminous flux (lm) (approx.) 8040.0000

More info

With the LED Workplace Luminaire we offer for the first time an efficient as well as ergonimic luminaire according to the protection type IP40. Instead of higher protection against spleshing water, an ergonimic Light is needed at  work places. The coverage is penetrated with diffuse particles which prevent multiple shadows and provides fatigue-free working. The range includes different lengths from 850 to 3050mm. We achieve optimal working light and flexible connection with a light colour of 5700K and M12 connectors. This product family is manufactured of high-quality anodized aluminium profiles and comes with an ESD-protection an board. As all of our LED luminaires. The durability of our luminaires relates directly to the heat management inside the luminaire. When operated within the rated ambient temperature, its durability is at last 60 000h. Our Workplace Luminaire is the right choice for application in dry areas. Please take advantage of our large-sized version too.
