  2. Industrial automation
  3. PLC components
  4. System SLIO

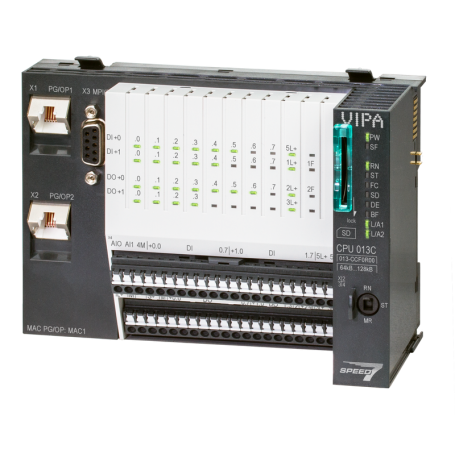

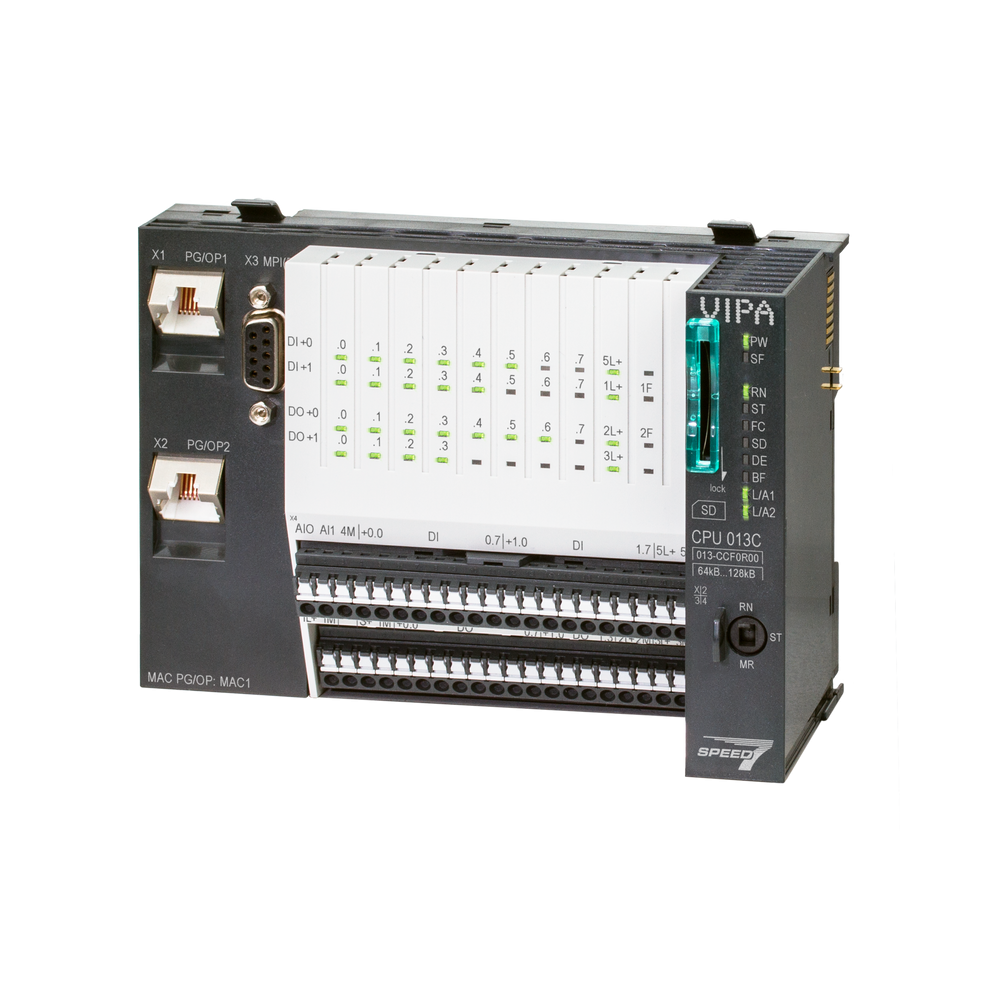

YASKAWA 013-CCF0R00, CPU 013C, 64 KB, 16 DI, 12 DO, 2 AI

013-CCF0R00

Yaskawa

013-CCF0R00

135730013CCF0R00

New

Work memory [KB]: 64...128 Onboard 16x DI / 12x DO / 2x AI [voltage 0...10 V] ] / 4x Counter / 2x [PWM/Pulse Train] Interface [2x RJ45]: active Ethernet PG/OP communication with DHCP support, switch, ModbusTCP master/slave, openCommunication, SmartPROFINET (iDevice) Interface [RS485]: MPI, PtP: ASCII, STX/ETX, 3964 (R), USS master, Modbus master/slave Optional: PROFIBUS master/slave Web server SD card slot with locking, up to 64 expansion modules, configurable with SPEED7 Studio, SIMATIC Manager and TIA Portal

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals UL, KC
Portection rating IP20
Min. ambient temperature 0.00 Celsius
Number of inputs 18.0000
Max. ambient temperature 60.00 Celsius
Number of digital inputs 16
Number of analog inputs 2
Number of outputs 12.0000
Number of digital outputs 12
Number of analog outputs 0
RAM 64.00 Kilobyte
Connection value 24.00 Volt

More info
