Licatec 7369-1, Terminal F2000 hf, 25x60mm, 2m, RAL 7035

Cable Duct 7369-1 25/60 HF, VE 60M

Licatec Cable Conducts

7369-1

0313573692560

4015070142389

New

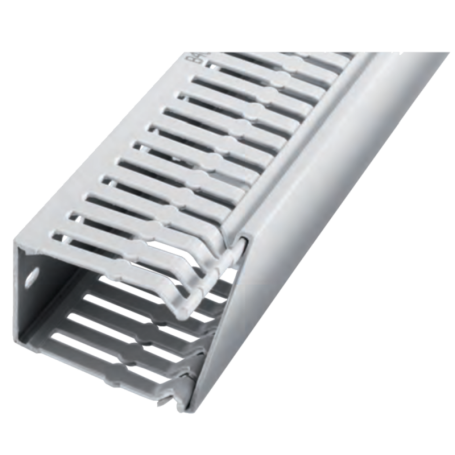

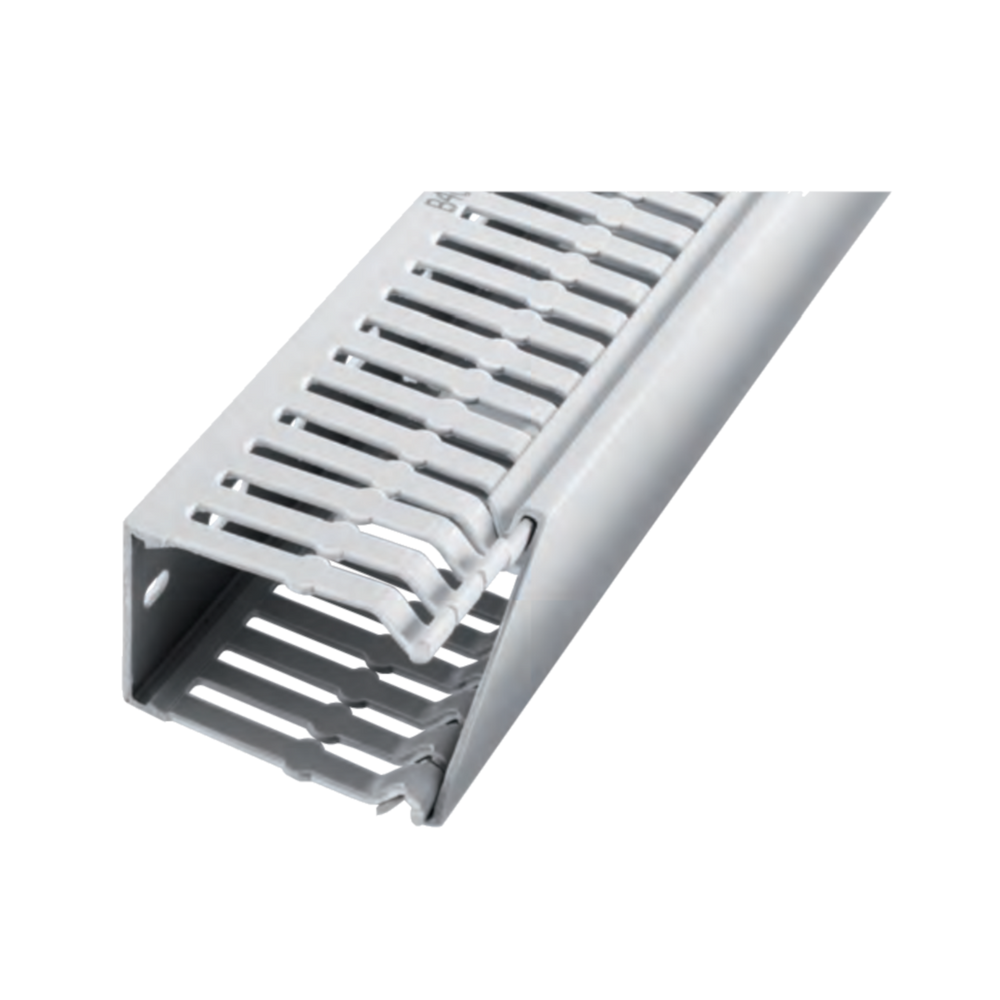

The Licatec 7369-1 cable duct is (L x B x H) 2m x 25mm x 60mm. The cable duct is supplied with a cover and is made of halogen free plastic. The packaging unit consists of 60 meters

More details

on stock

120 Items

20.45 CHF inkl. MwSt.

Data sheet

Standards / Approvals CE, WEEE compliant, UL Listed Material File No: E178485, RoHS, VDE 0472, Part 815, Complies with F2 and F3 of railway standards NF F 16-101
Length 2.00 Meter
Packaging unit (m) 60.00 Meter
Width 25.00 Millimeter
Height 60.00 Millimeter
Material Halogenfree
Functions Temperature resistance -25° to +75°C, Material does not release toxic gases in case of fire
Color Grey, RAL 7035

More info

Licatec Terminal F 2000 halogen-free wiring ducts comply with DIN EN 50085. This series is made of halogen-free plastic according to VDE 0472, part 815. The material does not release any toxic gases in case of fire. Temperature resistance -25° C to + 90° C. Terminal F 2000 Wiring duct - General features Optimum cover fit, easy assembly and disassembly predetermined breaking points at the webs and at the wiring trunking base Use of dividers possible bottom perforation according to DIN, punching pattern identical for every length Burr-free embossing - no risk of injury for the fitter and the cables Delivery length: 2 m, with lid Fixed lengths: on request
