Licatec 7373-1, Terminal F2000 hf, 80x60mm, 2m, RAL 7035

Cable Duct 7373-1 80/60 HF, VE 32M

Licatec Cable Conducts

7373-1

0313573738060

4015070142402

New

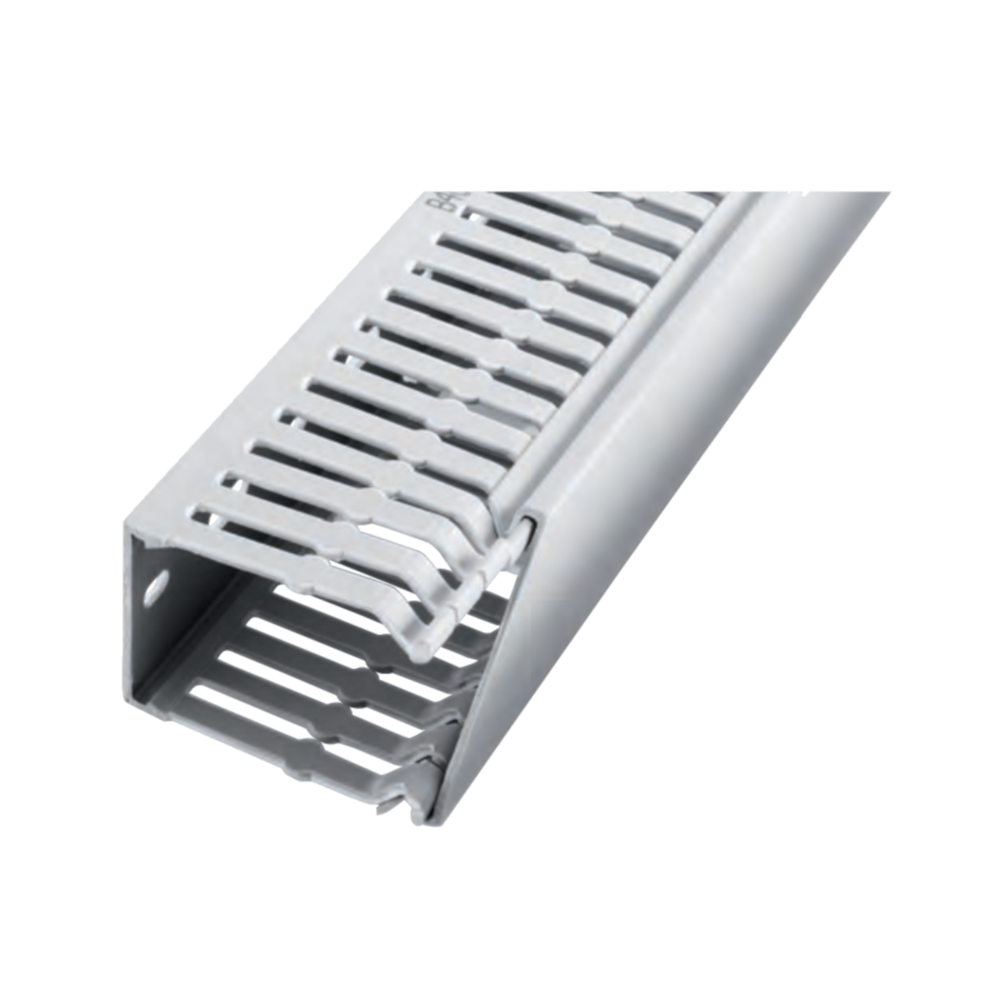

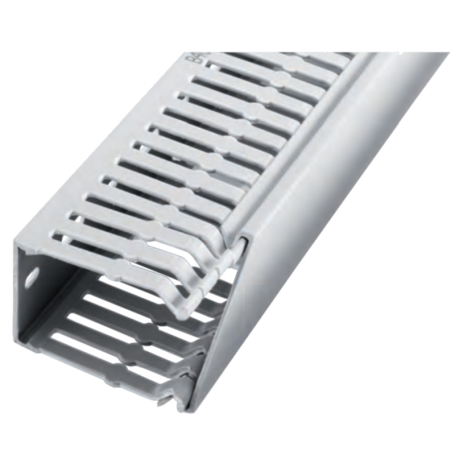

The Licatec 7373-1 cable duct is (L x B x H) 2m x 80mm x 60mm. The cable duct is supplied with a cover and is made of halogen free plastic. The packaging unit consists of 32 meters

More details

on stock

128 Items

36.45 CHF inkl. MwSt.

Data sheet

Length 2.00 Meter
Standards / Approvals RoHS, VDE 0472, Part 815, Complies with F2 and F3 of railway standards NF F 16-101, CE, WEEE compliant, UL Listed Material File No: E178485
Packaging unit (m) 32.00 Meter
Width 80.00 Millimeter
Height 60.00 Millimeter
Material Halogenfree
Functions Material does not release toxic gases in case of fire, Temperature resistance -25° to +75°C
Color Grey, RAL 7035

More info

Licatec Terminal F 2000 halogen-free wiring ducts comply with DIN EN 50085. This series is made of halogen-free plastic according to VDE 0472, part 815. The material does not release any toxic gases in case of fire. Temperature resistance -25° C to + 90° C. Terminal F 2000 Wiring duct - General features Optimum cover fit, easy assembly and disassembly predetermined breaking points at the webs and at the wiring trunking base Use of dividers possible bottom perforation according to DIN, punching pattern identical for every length Burr-free embossing - no risk of injury for the fitter and the cables Delivery length: 2 m, with lid Fixed lengths: on request
