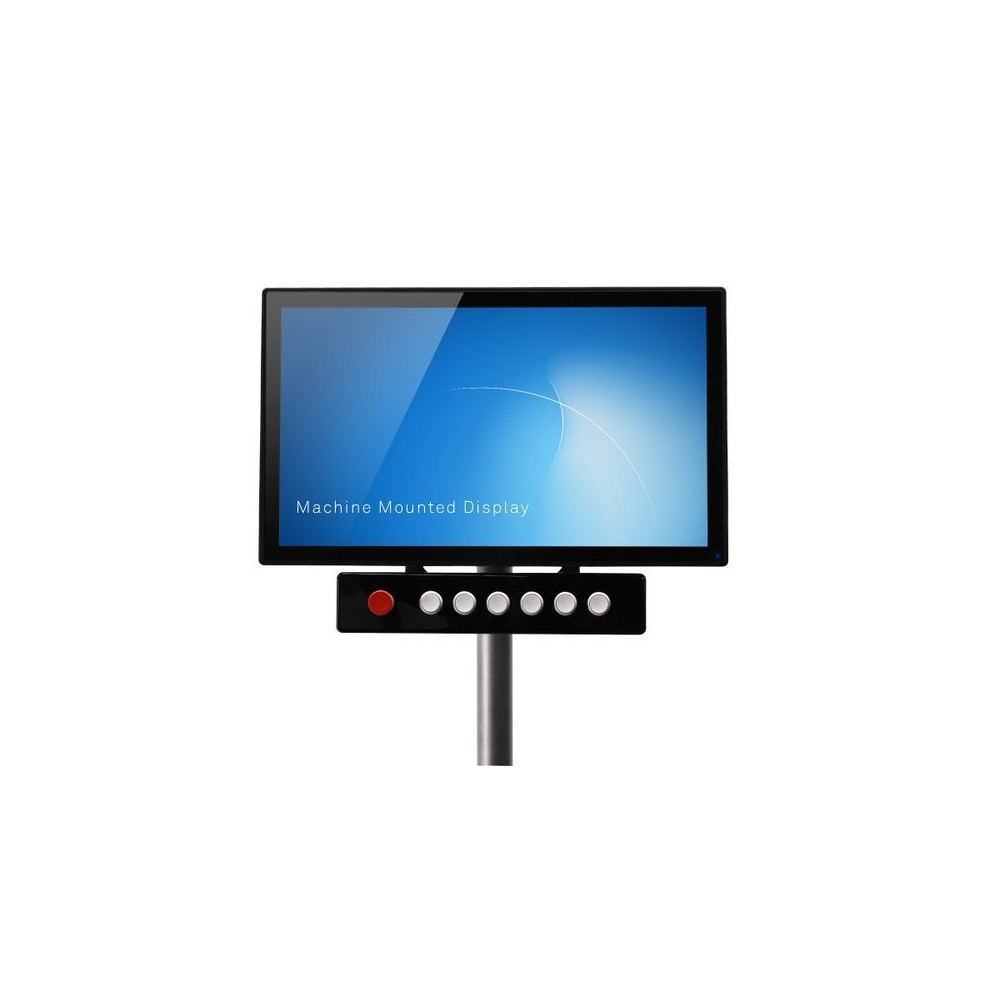

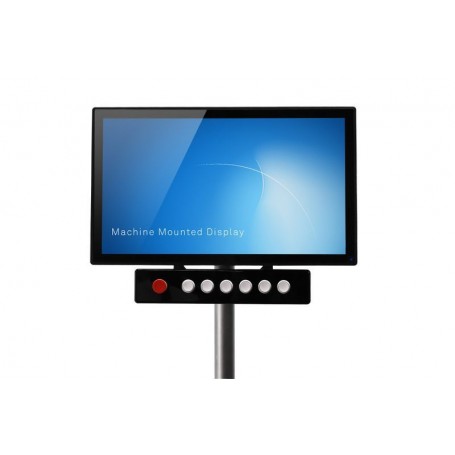

ADS-TEC, MMD Basis 23,8'' HD1080 1920 x 1080, PCAP-Touch

Machine Displays - MMD9016

machine Mounted display - stainless steel monitor for use in the food, beverage, pharmaceutical and chemical industries All-round

closed stainless steel housing, without screws and edges, optimized for high hygiene requirements - the new display from ADS-TEC has been developed and designed for machine and system operation in the sensitive hygiene area. Technology 100% Made in Germany.

Robust technology Slim design
• All-round closed stainless steel housing
• Degree of protection IP69K
• Surfaces in glass and stainless steel for optimal cleaning of the device
• Hygienic design without screws and edges on the back
• Front screen chemically hardened

Convenient display sizes For extensive
system and process visualization
• 15.6" TFT LED - Backlight
• Full HD 1920 x 1080 pixels
• Bright display with a wide viewing angle
• Clear visualization and control of machines and systems

 Simple and intuitive Current multi-touch technology
• Capacitive multi-touch display for comfortable multi-finger operation
• Can be operated with gloves

Mounting made easy Flexible mounting
concept
• For 48 mm support arm systems, VESA connection or direct mounting
• Elegant design and compact design
• Stand or support arm mounting possible
• Horizontal or vertical alignment possible
• Concealed cable routing through support arm and mounting adapter

Easy cleaning Optimized for high hygiene requirements
• Use of commercial cleaning agents possible
• Easy wiping and cleaning
• Prevention of dirt and bacteria thanks to the screwless design without joints and edges

product properties

Display
• Full HD display for maximum overview

Touchscreen
• PCAP Multi-Touch for easy operation via USB
• Can be operated with gloves

Protection
class
• IP69K all round
• Ideal for use in the food, beverage, pharmaceutical and chemical industries

Robustness
The MMD series is shockproof according to IK08 and designed for heat and cold. The front screen is anti-reflective and made of hardened glass with anti-shatter film.

certificate

Certified clean room suitability up to GMP A/B
The Fraunhofer IPA Institute examined the product for its suitability for the clean room and prepared an expertise based on specified criteria such as the materials used and construction. According to the results of the Fraunhofer Institute, the product achieves clean room suitability up to GMP A/B, which corresponds to the requirements of EHEDG, ISO 14159-1 and DIN EN 1672-2. Clean room suitability is one of the most important criteria in clean and hygienic areas of industry and Research. Class A has the highest / purest level.
