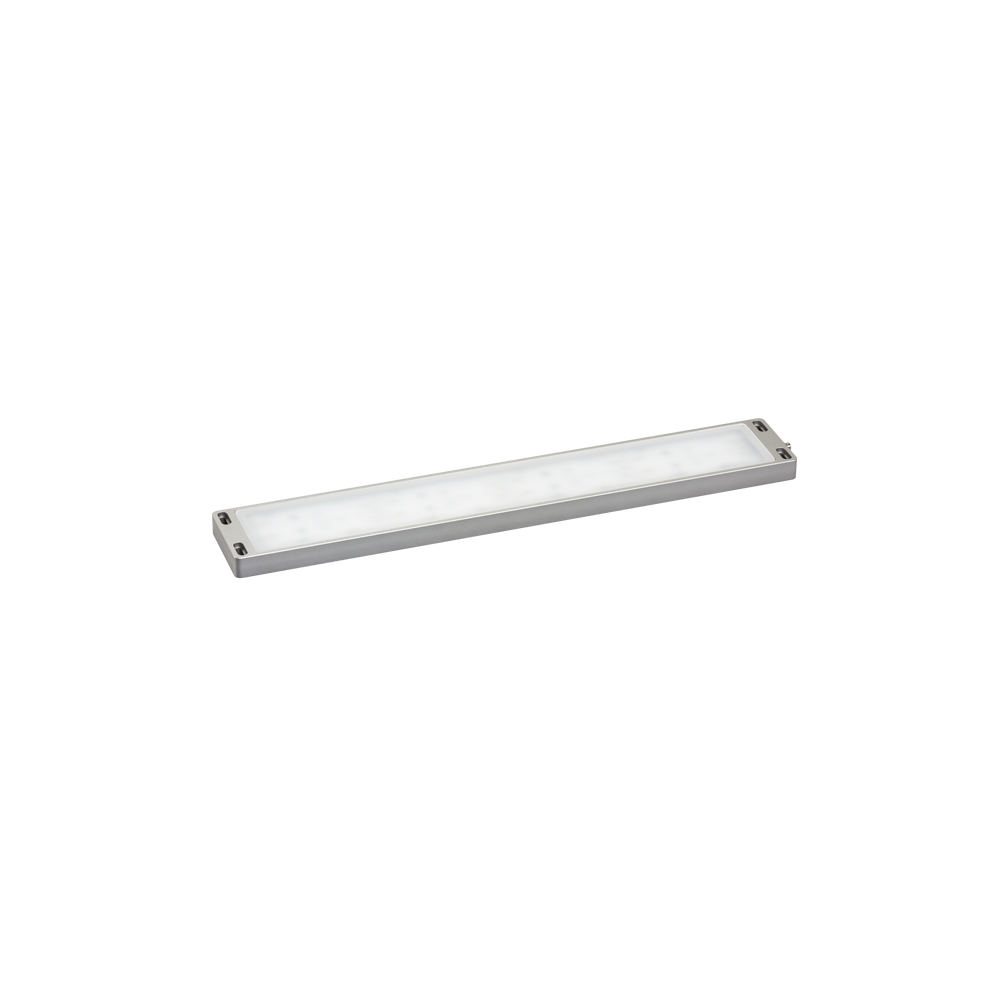

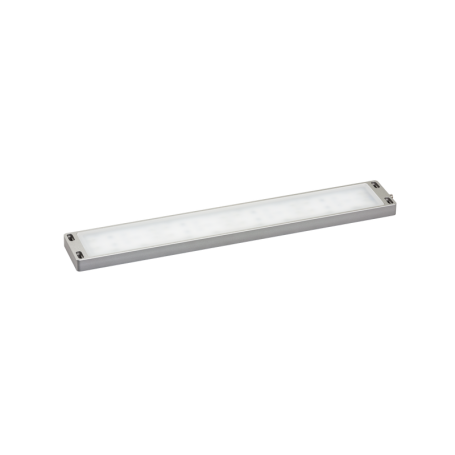

SANGEL LED surface mounted luminaire FLS450, Machine Luminaire, IP67, 450mm, 3216lm

LED surface mounted luminaire FLS450

SANGEL® Systemtechnik GmbH

FLS450 DIFF-O-3M-55

New

The LED surface mounted luminaire FLS comes with M8 connector. For the light cover, you can select from diffuse acrylic glass and diffuse single-pane safety glass.

More details

on stock

1 Item

370.80 CHF inkl. MwSt.

Data sheet

Standards / Approvals DIN EN 61547 (EMV), DIN EN 60598-1, DIN EN 62471, DIN EN 55015 (EMV)
Length 450.00 Millimeter
Luminaire type LED MACHINE LIGHTS
Portection rating IP67
Protection Class III
Min. ambient temperature -20.00 Celsius
Max. ambient temperature 45.00 Celsius
Power consumption (W) 28.00 Watt
Connection Type M8 connector, 3m cable
Connection value 24.00 Volt
Housing anodised aluminium
Cover single-pane safety glass diffuse, PMMA diffuse
Service life 60000.00 Hour
Colour temperature 5700.00 Kelvin
Colour rendering RA / CRI ≥ 80
Luminous flux (lm) (approx.) 3216.0000

More info

Available in four different lengths, our LED surface mounted luminaire FLS boasts an impressively small installation height of just 17,5 mm. Its anodised aluminium housing has an IP67 protection rating, with its flat design and resistance to splashing water and dust ensuring it can withstand any challenges, even close up.

The LED surface mounted luminaire FLS comes with M8 connector as standard. For the light cover, you can select from diffuse acrylic glass and diffuse single-pane safety glass.
