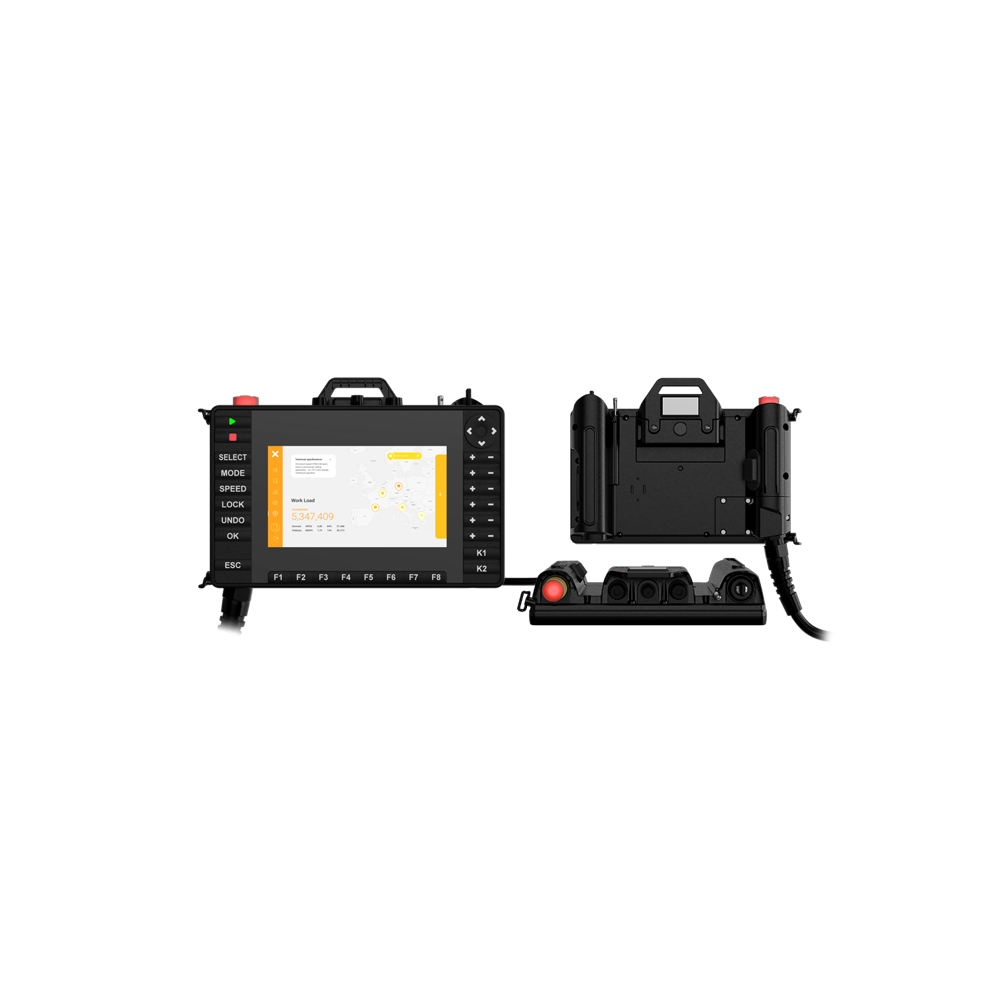

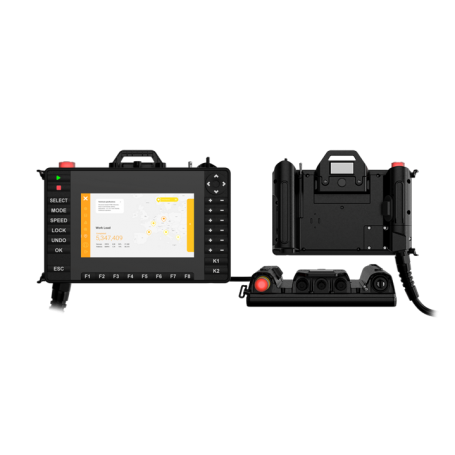

EXOR X7 Wired, 7 Zoll Handpanel, PCAP Touch, Emergency Stop, Keypad

X7 Wired

Exor International S.p.A

10100540YE-0001-01

S-061-156632

New

Mobile HMI 7’ PCAP touch, emergency stop, keyboard, JMobile runtime, net weight approx. 1.12 kg

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Length 257.90 Millimeter
Display size 7"
Portection rating IP65
Width 158.60 Millimeter
Height 62.50 Millimeter
Voltage (typical) 24.00 Volt
Resolution 1024 x 600
Touchscreen PCAP Multi-Touch
Voltage Range (Min.) 19.20 Volt
Operating system Linux RT
Brightness (cd/m²) 400
Voltage Range (Max.) 28.80 Volt
Current consumption max. 0.40 Ampere
CPU 64-bit RISC quad core - 1.6GHz
RAM 2.00 Gigabyte
Memory / Flash 4.00 Gigabyte

More info


Mobile HMI 7’ PCAP touch, emergency stop, keyboard, JMobile runtime, net weight approx. 1.12 kg
