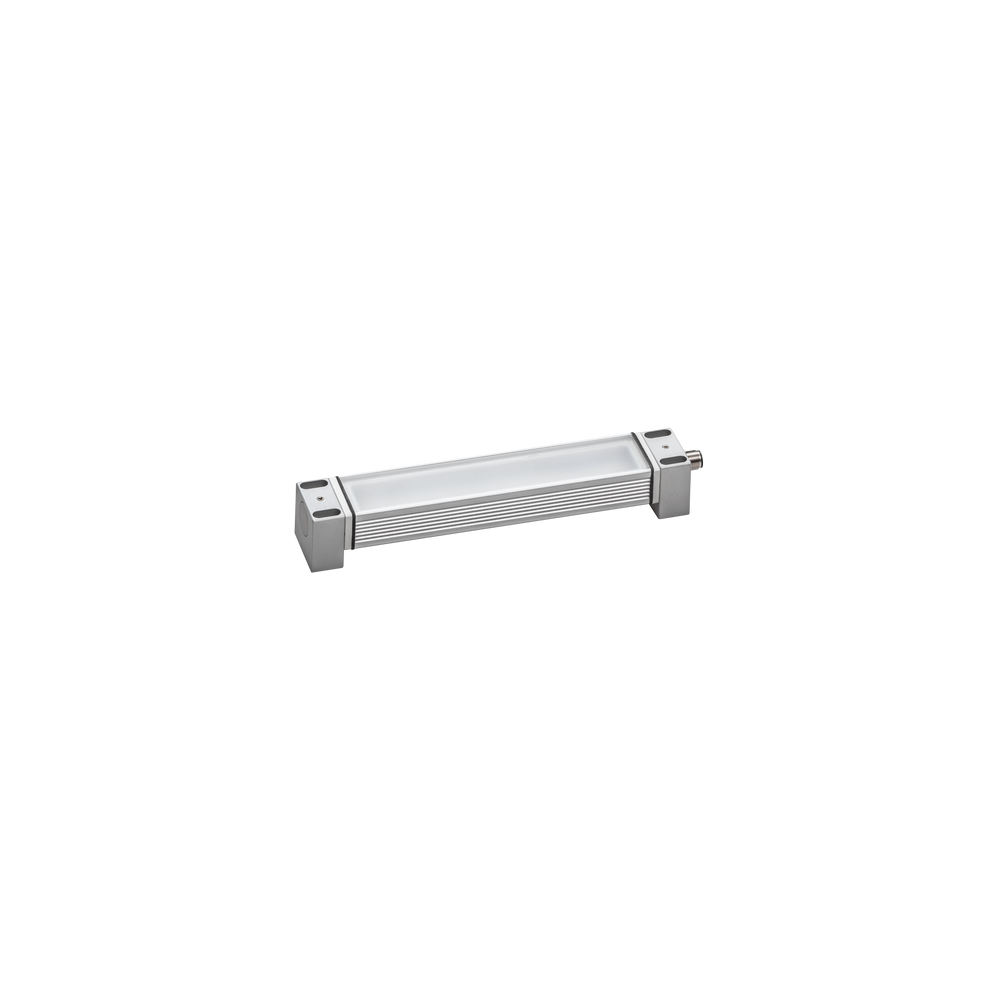

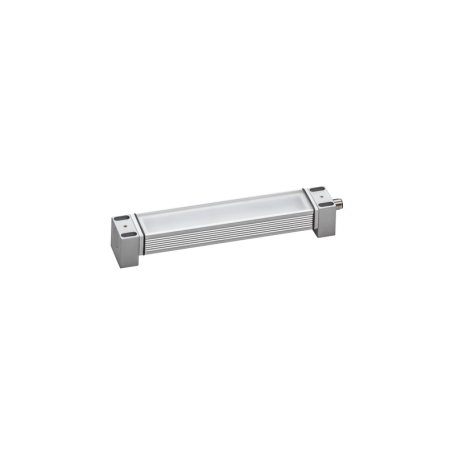

SANGEL LED surface mounted luminaire L195, Machine Luminaire, IP67

L195 D-DIFF-O-M12-55

SANGEL® Systemtechnik GmbH

12080107

58581012080107

New

The LED surface mounted luminaire L comes with your choice of a 3 metre cable or M12 connector as standard. For the light cover, you can select from diffuse acrylic glass and diffuse single-pane safety glass. The diffuse acrylic glass light cover has been selected specifically for this luminaire in order to achieve uniform illumination without the disruptive phenomenon of multiple shadows.

More details

on stock

1 Item

270.25 CHF inkl. MwSt.

Data sheet

Luminaire type LED MACHINE LIGHTS
Standards / Approvals DIN EN 61547 (EMV), DIN EN 60598-1, DIN EN 62471, DIN EN 55015 (EMV)
Length 195.00 Millimeter
Portection rating IP67
Protection Class III
Min. ambient temperature -20.00 Celsius
Max. ambient temperature 45.00 Celsius
Power consumption (W) 5.30 Watt
Connection value 24.00 Volt
Housing anodised aluminium
Cover single-pane safety glass diffuse, PMMA diffuse
Service life 60000.00 Hour
Colour temperature 5700.00 Kelvin
Colour rendering RA / CRI ≥ 80
Luminous flux (lm) (approx.) 603.0000

More info

Our LED surface mounted luminaire L is a true master of transformation. In the linear version, it is available in four different lengths and two installations types. Any lighting issues inside a machine can be solved by installing the LED surface mounted luminaire L with a swivel mount. With the static mount option, the installation height is 25 mm. The version with the swivel mount does require an installation height of around 37mm, but it affords the benefit of unique positioning and illumination. The anodised aluminium housing has an IP67 protection rating, meaning it is resistant to splashing water and dust. The LED surface mounted luminaire L can withstand even the toughest of applications.

The LED surface mounted luminaire L comes with your choice of a 3 metre cable or M12 connector as standard. For the light cover, you can select from diffuse acrylic glass and diffuse single-pane safety glass. The diffuse acrylic glass light cover has been selected specifically for this luminaire in order to achieve uniform illumination without the disruptive phenomenon of multiple shadows.
