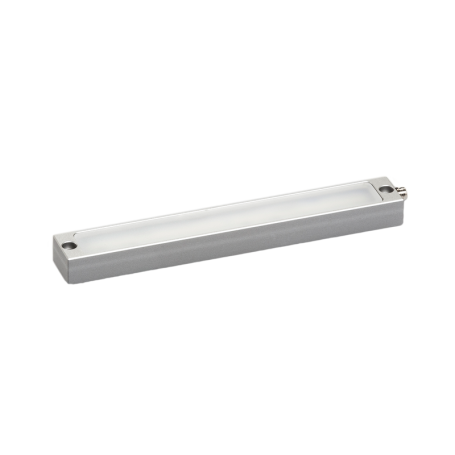

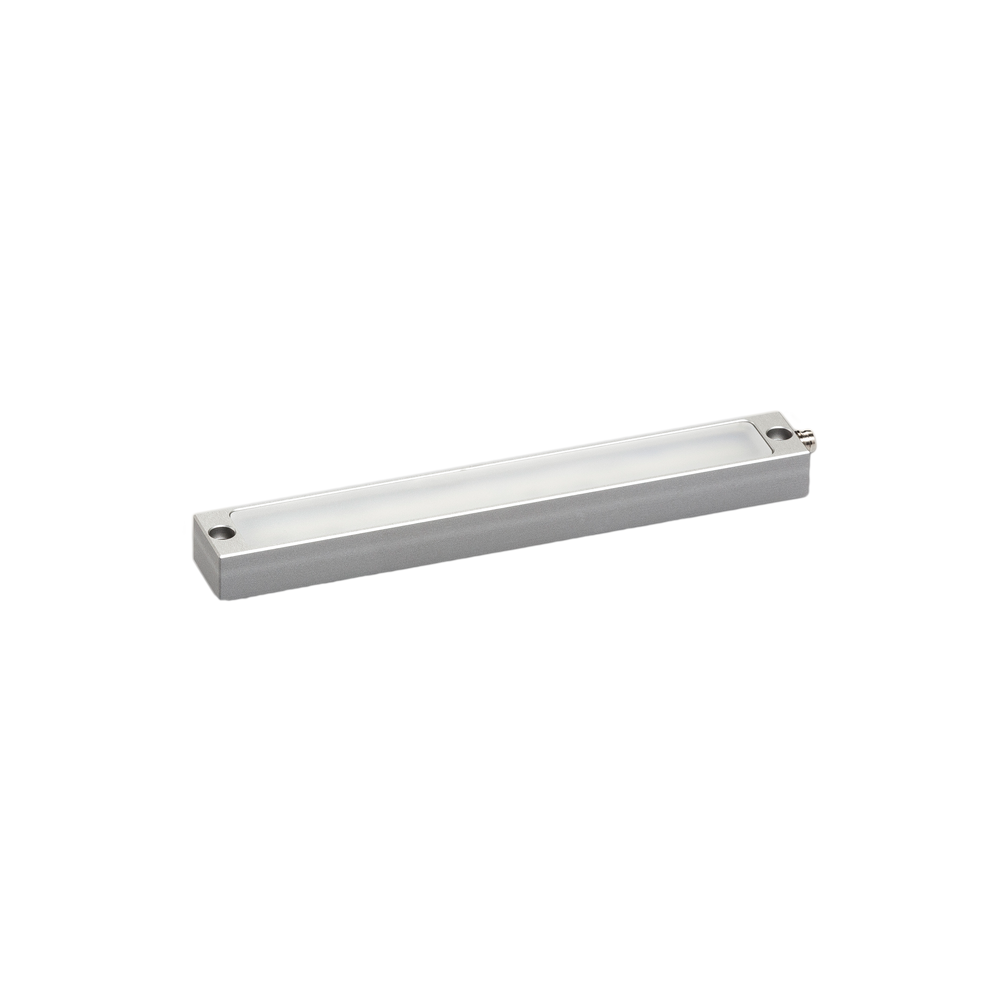

SANGEL LED compact luminaire 185, Machine Luminaire, IP67, 185mm

LED compact luminaire 185

SANGEL® Systemtechnik GmbH

LED KL 185

New

It is not for nothing that we have chosen this name for our LED compact luminaire. The machine lamp is small and handy, it adapts to various requirements and meets the highest light quality. The anodised aluminium housing complies with protection class IP67 and is therefore protected against splash water and dust. Their use is also intended for the most coarse applications.

More details

on stock

4 Items

165.40 CHF inkl. MwSt.

Data sheet

Standards / Approvals DIN EN 61547 (EMV), DIN EN 60598-1, DIN EN 62471, DIN EN 55015 (EMV)
Length 185.00 Millimeter
Luminaire type LED MACHINE LIGHTS
Portection rating IP67
Protection Class III
Min. ambient temperature -20.00 Celsius
Max. ambient temperature 45.00 Celsius
Power consumption (W) 7.00 Watt
Connection Type M8 connector, 3m cable
Connection value 24.00 Volt
Housing anodised aluminium
Cover single-pane safety glass diffuse, PMMA diffuse
Service life 60000.00 Hour
Colour temperature 5700.00 Kelvin
Colour rendering RA / CRI ≥ 80
Luminous flux (lm) (approx.) 804.0000

More info

The LED compact luminaire comes with your choice of a 3 metre cable or M8 connector as standard. For the light cover, you can select from diffuse acrylic glass and single-pane safety glass.
