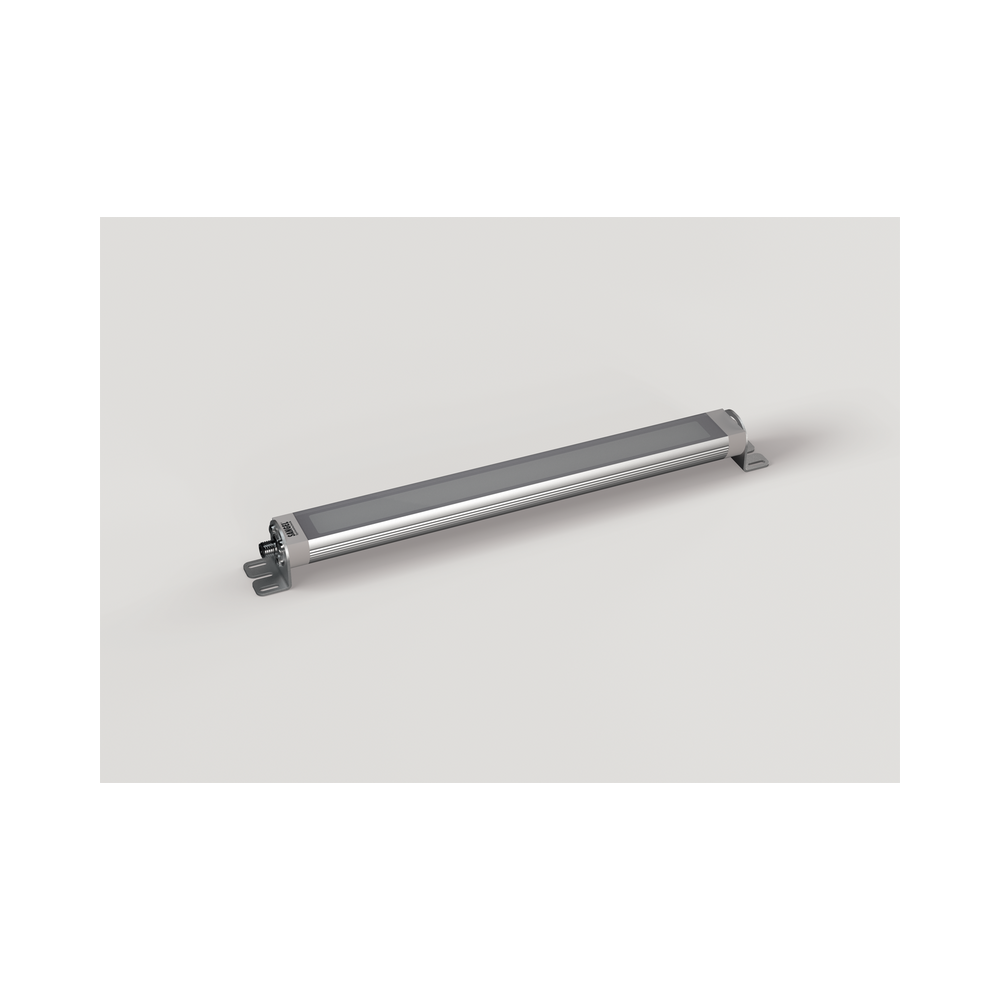

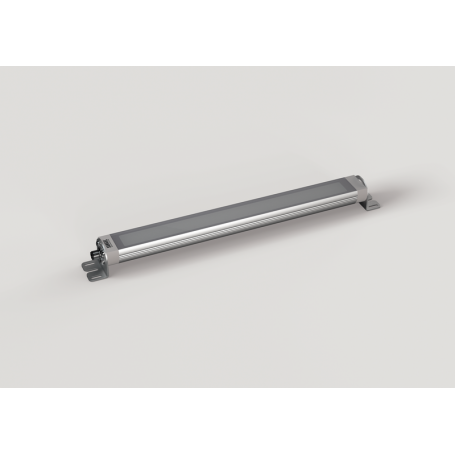

SANGEL LED surface mounted luminaires LR40, 365mm, IP67, 4000K/5700K

Surface mounted luminaires LR40, 365mm

SANGEL® Systemtechnik GmbH

LED LR40 365

New

By processing robust materials such as anodised aluminium and safety glass as well as using an extremely chemically resistant adhesive, the LR40 not only withstands splash water, metal chips or lubricating oils, but also all cooling lubricants commonly used in machine and plant construction.

More details

on stock

3 Items

194.60 CHF inkl. MwSt.

Data sheet

Luminaire type LED MACHINE LIGHTS
Length 365.00 Millimeter
Standards / Approvals DIN EN 62471, DIN EN 55015 (EMV), DIN EN 61547 (EMV), DIN EN 60598-1
Portection rating IP67
Protection Class III
Min. ambient temperature -20.00 Celsius
Max. ambient temperature 45.00 Celsius
Power consumption (W) 10.00 Watt
Connection Type M12 connector
Connection value 24.00 Volt
Housing anodised aluminium
Cover PMMA diffuse, single-pane safety glass diffuse
Service life 60000.00 Hour
Colour temperature 5700.00 Kelvin
Colour rendering RA / CRI ≥ 80
Luminous flux (lm) (approx.) 1073.0000

More info

The LR40 series is an additional alternative to the L/LO series. By processing robust materials such as anodised aluminium and safety glass as well as using an extremely chemically resistant adhesive, the LR40 not only withstands splash water, metal chips or lubricating oils, but also all cooling lubricants commonly used in machine and plant construction.

Like the L/LO, the luminaire can also be rotated at will via mounting brackets and is available with a built-in 30° or 60° lens, thus enabling the light to be focused on a specific area. The LR40 is therefore the perfect luminaire for machine tool construction, as its properties meet exactly the requirements set in the industry to a machine lamp.

Due to its wide range of properties and configuration options, such as different light temperatures, types of cover, optics and length variants, the LR40 is a true all-rounder among industrial luminaires. It is therefore also suitable for use in sectors such as packaging machines, woodworking machines, printing machines, food processing machines, plastics processing machines, etc.

In our successor model, the Eco mode is, of course, also a fixed component. Here, too, the illuminance can be reduced to 30 % by PWM signal. The enlarged cross-section of the conductor paths on the printed circuit boards makes it possible to cascade up to four LR40 luminaires of the longest version. This means that machines can be illuminated over a length of approx. five metres with just one voltage source.
