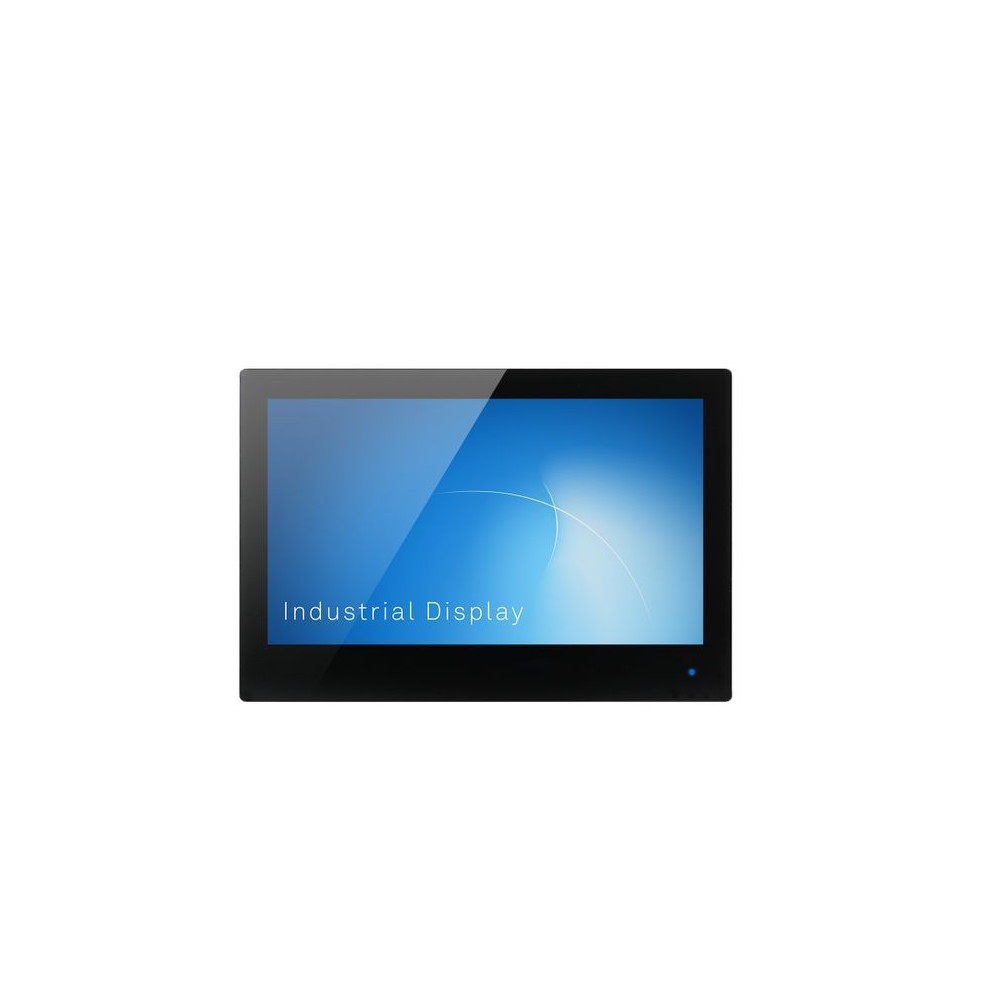

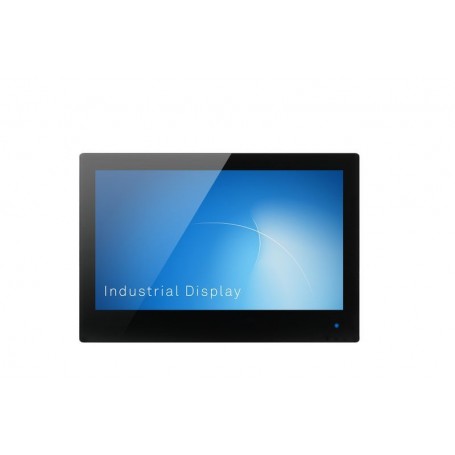

OPD Basis 23,8'' Full-HD 1920 x 1080, PCAP-Touch

HMI display - OPD9000

Industrial displays HMI solution of the latest generation for optimized use

The new monitor solutions of the OPD9000 series from ADS-TEC are optimally equipped for new future-oriented software applications due to the full HD display in widescreen format. The operation as well as the visualization of the process environment is made possible by the three available inch sizes. Technology 100% Made in Germany.

Diverse display sizes For the right view
Three different screen sizes in widescreen format

• 15.6" TFT Full HD display
• 18.5" TFT Full HD display
• 23.8" TFT Full HD display

Fast installation Convenient and easy
• The innovative fastening concept of the OPD9000 series allows the device to be easily installed without separate assembly parts
• The special shape of the fastening elements means that the HMI display is pressed linearly against the mounting wall and thus has an optimal hold without stressing the mounting wall at specific points

Integrated HDBaseT receiver module The additional option for longer distances

The optionally integrable HDBaseT receiver module allows transmission of multimedia signals (image, sound, touch operation) up to 100 m via a single cable. The ideal solution for remote application environments in combination with industrial PCs from ADS-TEC such as our IPC series .

HDBaseT Box – transmitter and receiver (optional)

The solution enables wired signal transmission of image and USB signal over a distance of up to 100m.

product properties

Robustness
The OPD9000 series is shockproof according to IK08. The front screen is made of tempered glass.

Multi-touch technology
Capacitive multi-touch display for convenient multi-finger operation. Operation with gloves is also possible.

Simple assembly
The innovative fastening concept of the OPD9000 series allows the device to be installed quickly and easily without separate assembly parts.

Protection
class The front of the OPD9000 series is available in protection class IP65.
