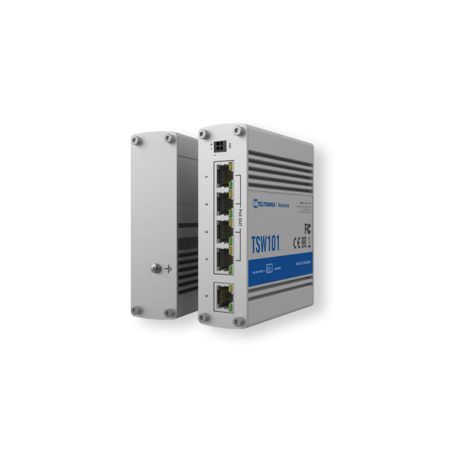

Teltonika TSW101, 5-port Gigabit POE+ Automotive Switch






TSW101 is Teltonika Networks’ first automotive-dedicated unmanaged switch. Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards. A wide range of supported power supply voltages (9-30 VDC), and a compact size allow it to slot into many automotive applications. Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts. 10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions. Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneously

More details

on stock

19 Items

143.25 CHF inkl. MwSt.

Data sheet

Length 115.00 Millimeter
Mounting options Mobile / Portable Installation
Portection rating IP30
Width 32.00 Millimeter
Height 95.00 Millimeter
Input voltage range 9 VDC - 30 VDC
Min. ambient temperature -40.00 Celsius
Max. ambient temperature 75.00 Celsius
Power consumption (W) 2.31 Watt
number of RJ45 ports 5
number of SFP-Ports 0
number of ST-Ports 0
number of SC-Ports 0
PoE available Yes
type of switch unmanaged
Ethernet interfaces 5 (5x 10/100/1000)
