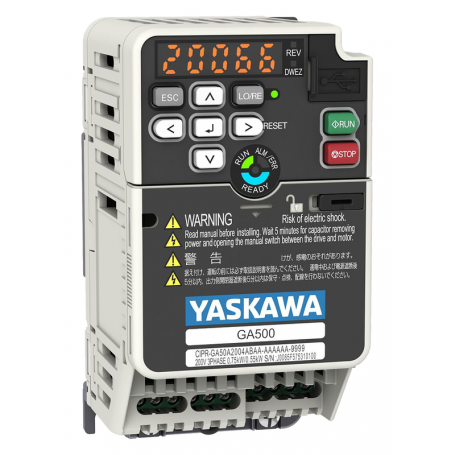

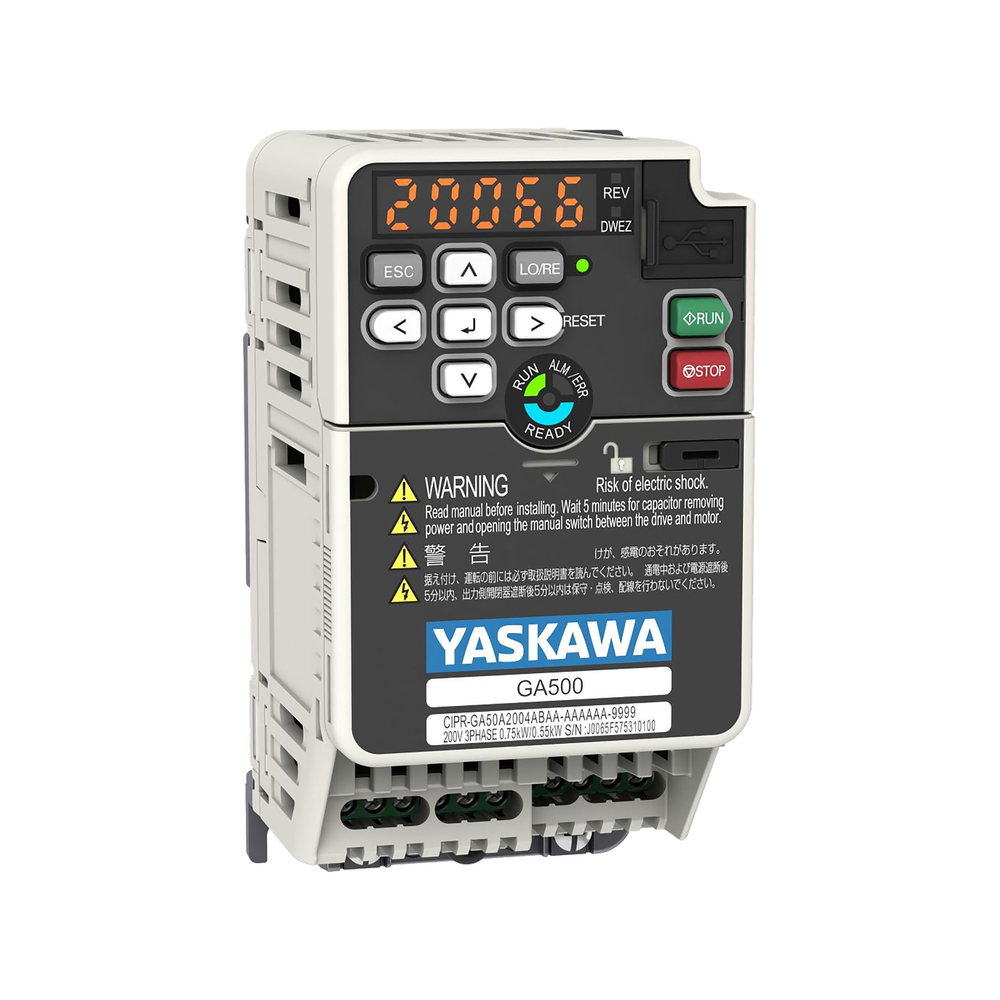

Yaskawa GA500 GA50C2082ABA, Inverter Drive, 200VAC, 3Ph, 22kW

GA50C2082ABA

Yaskawa

GA50C2082ABA

131300GA50C2082ABA

New

The Yaskawa GA500 GA50C2082ABA Inverter Drive provides 22kW output power, operates at 200V and is connected with 3 phases.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals RoHS, cUL, CE, UL
Maximum Altitude 1000m, 4000m with reduced performance
Width 220.00 Millimeter
EMC-Filter without filter
Height 350.00 Millimeter
Input voltage range 200 V
Min. ambient temperature -10.00 Celsius
Max. ambient temperature 50.00 Celsius
Depth 187.00 Millimeter
Normal Duty (ND) 22.00 Kilowatt
High Duty (HD) 18.50 Kilowatt
Current (ND) 82.00 Ampere
Current (HD) 75.00 Ampere
Number of phases 3.0000
Overload capacity 150% HD, 110% ND
Output frequency 0 - 590 Hz
Functions STO with SIL3/PLe
Operation humidity max. 95% (without condensation)

More info

The Yaskawa GA500 series frequency inverters convince with their compact design and many integrated functions. They are available in 1-phase/3-phase, 200V/400V and various output powers.
