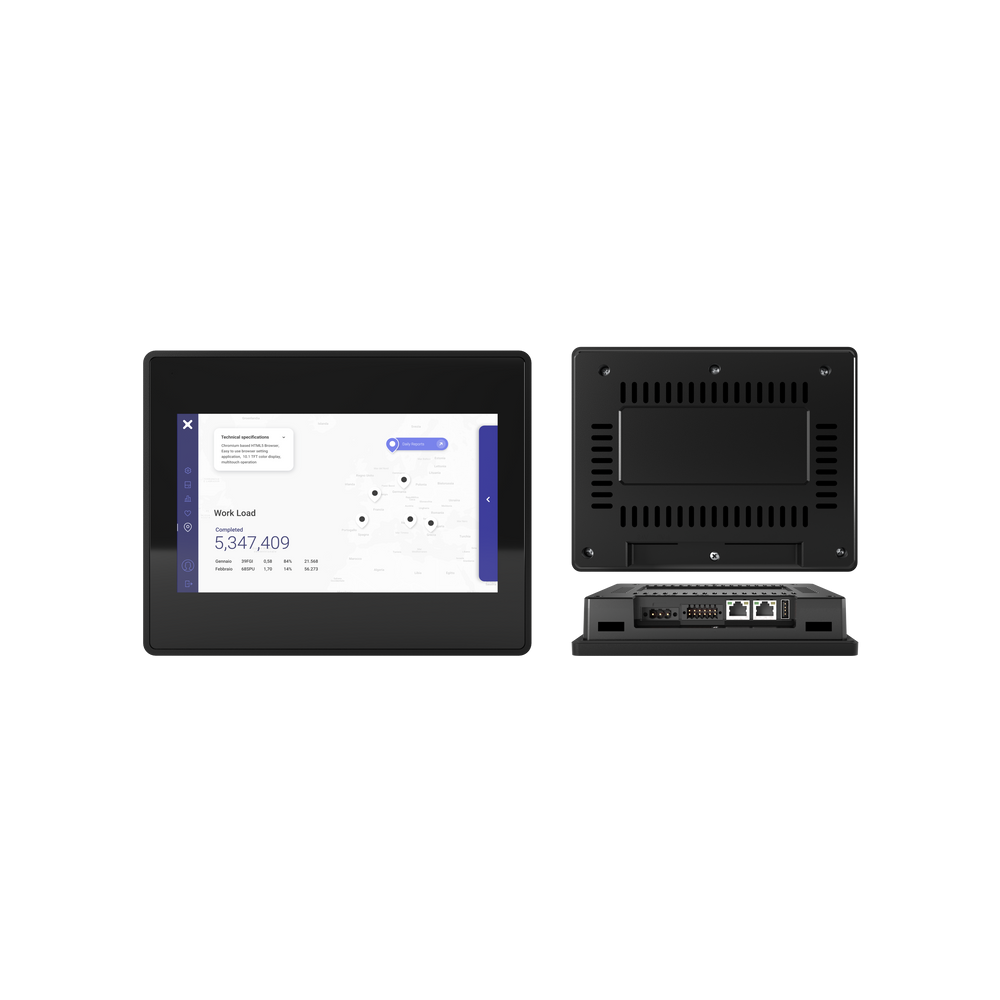

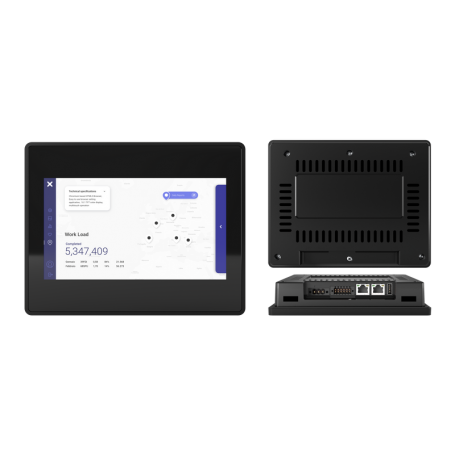

EXOR eX207, Industrial Touch Panel, 7", 1024x600, Ethernet, USB, Serial

eX207

Exor International S.p.A

EX207U501

S-061-156342

New

Available soon! EXOR eX200 series: Technology at the service of the process The new EXOR eX200 series WWS combine excellent technical specifications with high performance and integrate the CORVINA software and platform. As well as offering control and data visualisation functions, these HMIs open the door to the IIoT world and provide easy access to innovation and technological advances. They offer more security to protect sensitive data and can be customised to specific needs. In essence, it is a strategic investment in operational efficiency.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals UL61010-1, CE, UL61010-2-201
Length 187.00 Millimeter
Display size 7"
Portection rating IP66 (Front) / IP20 (Rear)
Voltage (typical) 24.00 Volt
Resolution 1024 x 600
Height 147.00 Millimeter
Touchscreen PCAP Multi-Touch
Min. ambient temperature -30.00 Celsius
Voltage Range (Min.) 9.00 Volt
Max. ambient temperature 70.00 Celsius
Depth 37.50 Millimeter
Operating system Linux
Brightness (cd/m²) 500
Voltage Range (Max.) 32.00 Volt
CPU 64-bit RISC quad core - 1.6GHz
RAM 2.00 Gigabyte
Memory / Flash 4.00 Gigabyte
Ethernet interfaces 2 (2 x 10/100)
USB interfaces 1 (Host V2.0)
Serial interfaces 1 (RS-232,RS-485,RS-422 SW config)
JMobile usable? Yes

More info

Available soon!

EXOR eX200 series: Technology at the service of the process

The new EXOR eX200 series HMIs combine excellent technical specifications with high performance and integrate the CORVINA software and platform.

These HMIs not only offer control and data visualisation functions, but also open the door to the IIoT world and provide easy access to innovations and technological advances.


They offer greater security to protect sensitive data and can be customised to meet specific needs. Essentially, it is a strategic investment in operational efficiency.
