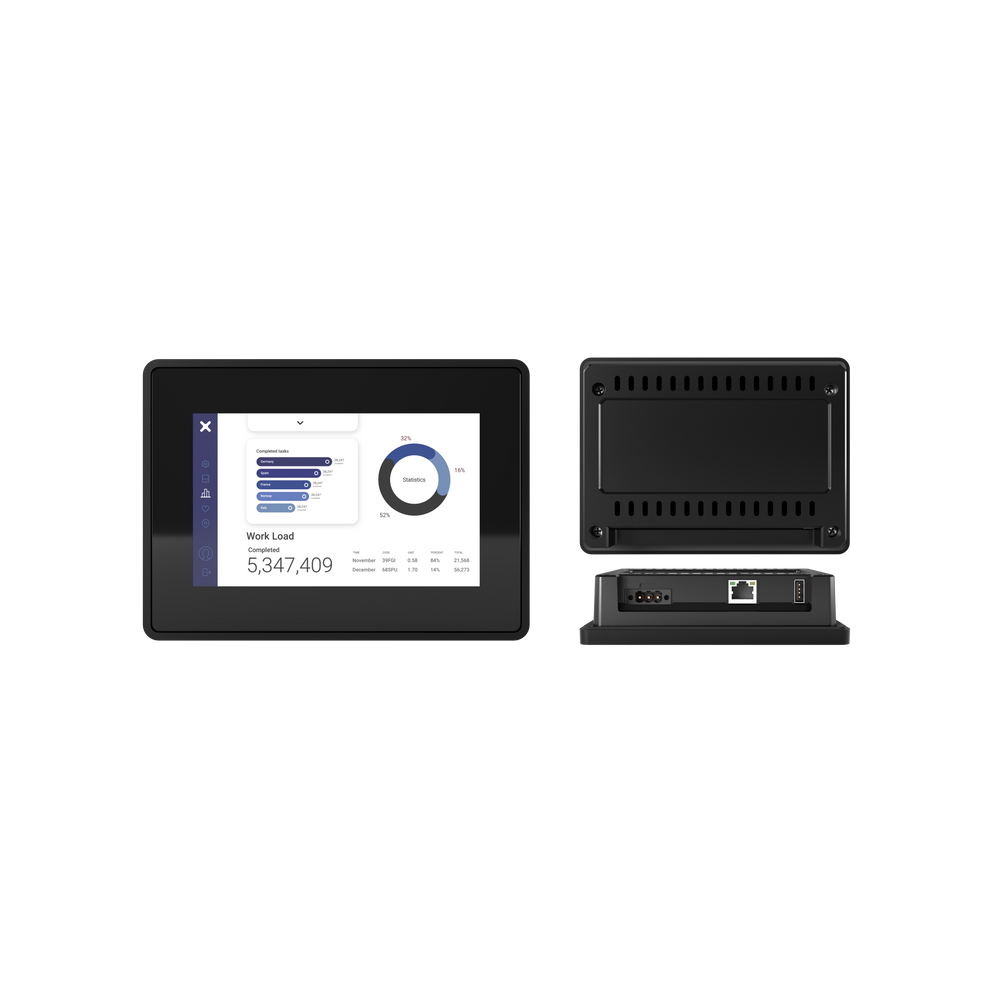

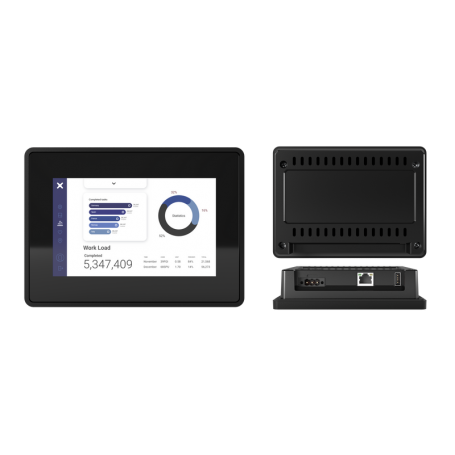

EXOR eX205 WEB, 5", Multi-Touch, 800x400, Linux, 2 GB RAM, 4 GB Flash

eX205 WEB

Exor International S.p.A

EX205U50W

S-061-156345

New

Available soon! EXOR eX200 series: Technology at the service of the process The new MMS of the EXOR eX200 series combine excellent technical specifications with high performance and integrate the CORVINA software and platform. These MMS not only offer control and data visualisation functions, but also open the door to the IIoT world and provide easy access to innovations and technological advances. They offer greater security to protect sensitive data and can be customised to meet specific requirements. Essentially, it is a strategic investment in operational efficiency.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals CE, UL61010-2-201, UL61010-1
Length 147.00 Millimeter
Portection rating IP66 (Front) / IP20 (Rear)
Display size 5"
Voltage (typical) 24.00 Volt
Resolution 800 x 480
Height 107.00 Millimeter
Min. ambient temperature -30.00 Celsius
Touchscreen PCAP Multi-Touch
Depth 37.50 Millimeter
Operating system Linux
Brightness (cd/m²) 500
Voltage Range (Min.) 9.00 Volt
Max. ambient temperature 70.00 Celsius
Voltage Range (Max.) 32.00 Volt
CPU 64-bit RISC quad core - 1.6GHz
RAM 2.00 Gigabyte
Memory / Flash 4.00 Gigabyte
Ethernet interfaces 2 (2 x 10/100)
USB interfaces 1 (Host V2.0)
JMobile usable? No

More info


Available soon! EXOR eX200 series: Technology at the service of the process The new MMS of the EXOR eX200 series combine excellent technical specifications with high performance and integrate the CORVINA software and platform. These MMS not only offer control and data visualisation functions, but also open the door to the IIoT world and provide easy access to innovations and technological advances. They offer greater security to protect sensitive data and can be customised to meet specific requirements. Essentially, it is a strategic investment in operational efficiency.
