Secomea SiteManager 1549, Wifi, 3 x LAN, 10 Agents, 12-24VDC, USB, RS233

SiteManager 1549

Secomea

32102

54540032102

5705966321026

New

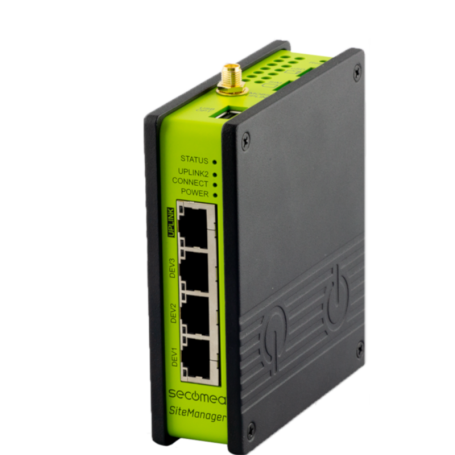

SiteManager 1549 WiFi is a rugged DIN rail mountable industrial gateway that provides remote access for maintenance of industrial facilities and equipment. It can be connected to the Internet via LAN or WiFi. SiteManager has 3 DEV/LAN ports that can be configured as bridged (normal switch) or individually managed ports with separate DHCP servers.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Technology 2G No
Standards / Approvals cUL, Japan Giteki, RCM, UL, FCC, CE
Supported network technologies WiFi, WAN, USB, LAN, Serial
Technologie Ethernet 10/100
SIM Card Slot none
Technology 3G No
Number of USB Ports 1
Connection type Supply voltage Connection terminals
Mounting options DIN-Rail mounting
Number of devices Agents 10
Technology 4G No
Number of RS232 Ports 1
Portection rating IP20
Min. ambient temperature -25.00 Celsius
Input voltage range 12 VDC - 24 VDC
Max. ambient temperature 55.00 Celsius
Number of digital inputs 2
Technology SMS No
Mobile Antenna none
Number of analog outputs 1
WIFI Antenna RP-SMA
GPS Antenna none
number of RJ45 ports 4
MicroSD-Slot Yes
Operation humidity 5 to 95% RH (without condensation)
CPU ARM Cortex-A7 - 800 Mhz
Housing Aluminium
Ethernet interfaces 4 10/100 (1x Uplink, 3x DEV)
USB interfaces 1 (Host V2.0)
Serial interfaces 1 (RS232)
