Secomea SiteManager 1529, 3 x LAN, 10 Agents, 12-24VDC, USB, RS232, microSD

SiteManager 1529

Secomea

32209

54540032209

5705966322092

New

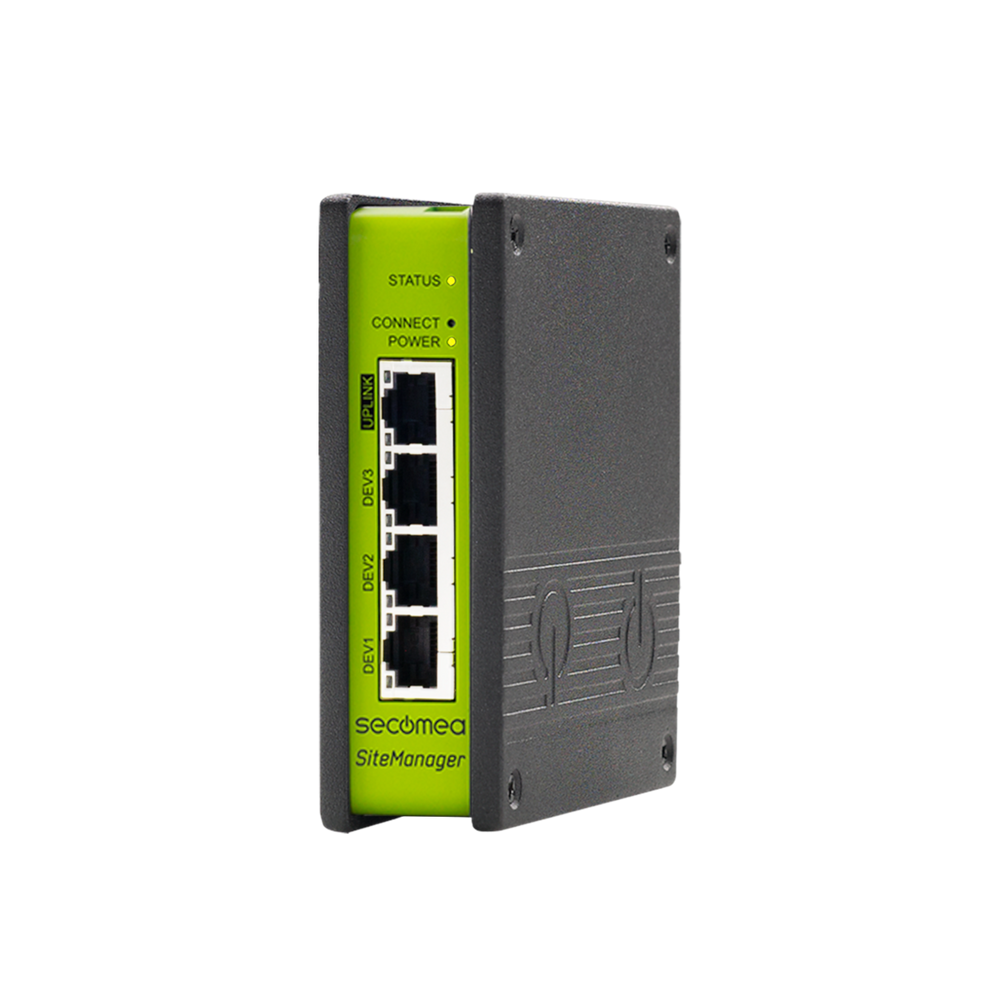

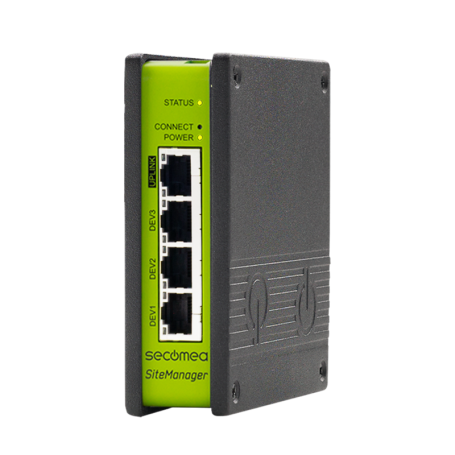

The SiteManager 1529 is a rugged DIN rail mountable industrial gateway that provides remote access for maintenance of industrial plants and equipment. The SiteManager has 3 DEV/LAN ports, which can be configured as bridged (normal switch) or as individually managed ports with separate DHCP servers.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals cUL, Japan Giteki, RCM, UL, FCC, CE
Technologie Ethernet 10/100
Supported network technologies Serial, WAN, USB, LAN
SIM Card Slot none
Number of devices Agents 10
Technology 3G No
Number of USB Ports 1
Connection type Supply voltage Connection terminals
Technology 4G No
Number of RS232 Ports 1
Technology 2G No
Portection rating IP20
Min. ambient temperature -25.00 Celsius
Input voltage range 12 VDC - 24 VDC
Max. ambient temperature 55.00 Celsius
Number of digital inputs 2
Technology SMS No
Mobile Antenna none
WIFI Antenna none
GPS Antenna none
number of RJ45 ports 4
MicroSD-Slot Yes
Operation humidity 5 to 95% RH (without condensation)
CPU ARM Cortex-A7 - 800 Mhz
Housing Aluminium
Ethernet interfaces 4 10/100 (1x Uplink, 3x DEV)
USB interfaces 1 (Host V2.0)
Serial interfaces 1 (RS232)

More info
