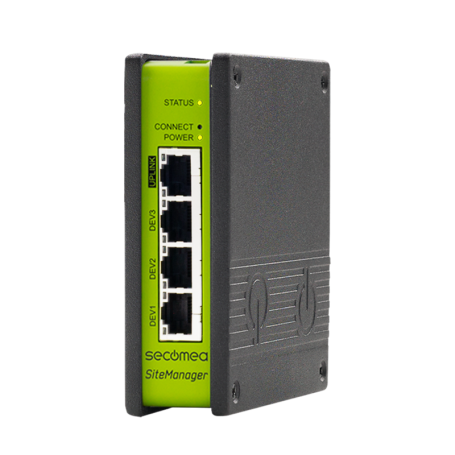

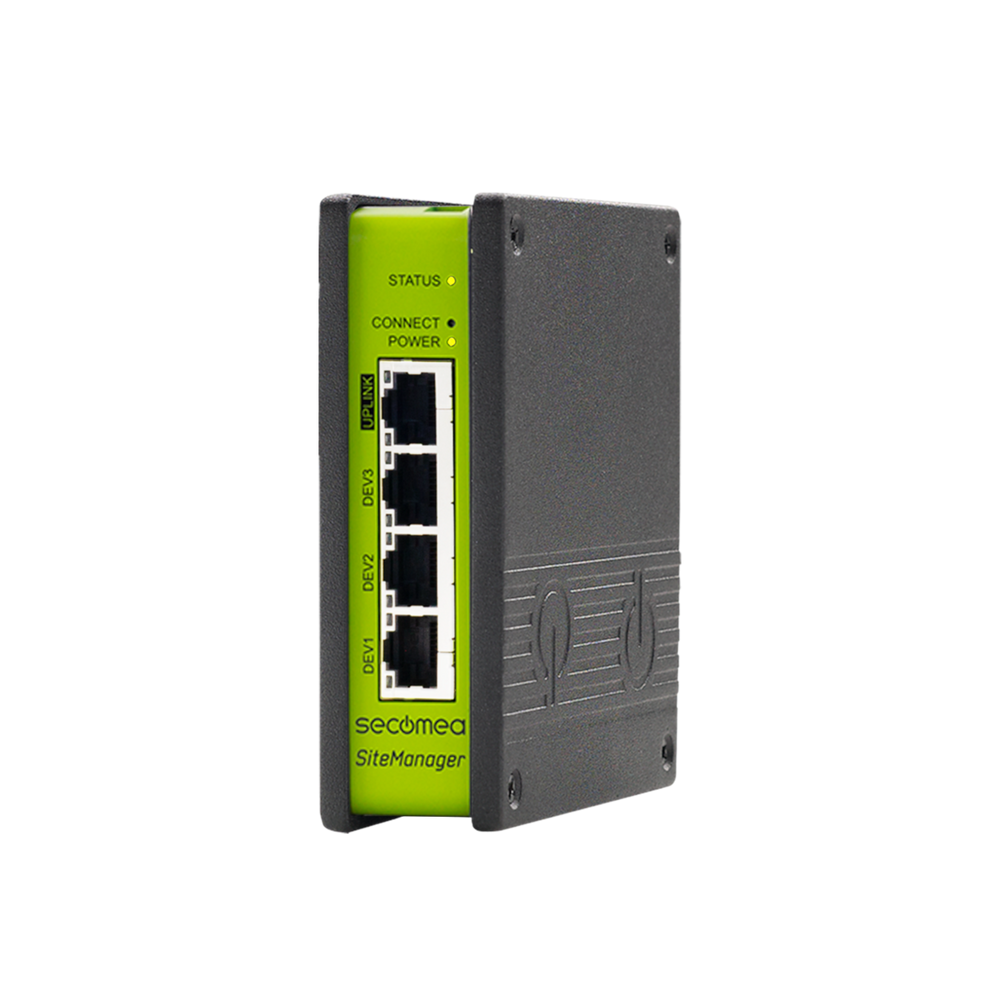

Secomea SiteManager 3529, 3 x LAN, 100 Agents, 12-24VDC, USB, RS232, microSD

SiteManager 3529

Secomea

32210

54540032210

5705966322108

New

The SiteManager 3529 is a rugged DIN rail mountable industrial gateway that provides remote access for maintenance of industrial plants and equipment. The SiteManager has 3 DEV/LAN ports, which can be configured as bridged (normal switch) or as individually managed ports with separate DHCP servers.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals UL, FCC, CE, cUL, Japan Giteki, RCM
Technology 3G No
Number of USB Ports 1
Supported network technologies WAN, USB, LAN, Serial
Connection type Supply voltage Connection terminals
Mounting options DIN-Rail mounting
Technology 4G No
Number of RS232 Ports 1
Technology 2G No
Technologie Ethernet 10/100
SIM Card Slot none
Number of devices Agents 100
Portection rating IP20
Input voltage range 12 VDC - 24 VDC
Min. ambient temperature -25.00 Celsius
Max. ambient temperature 55.00 Celsius
Number of digital inputs 2
Technology SMS No
Mobile Antenna none
WIFI Antenna none
Number of analog outputs 1
GPS Antenna none
number of RJ45 ports 4
MicroSD-Slot Yes
Operation humidity 5 to 95% RH (without condensation)
CPU ARM Cortex-A7 - 800 Mhz
Housing Aluminium
Ethernet interfaces 4 10/100 (1x Uplink, 3x DEV)
USB interfaces 1 (Host V2.0)
Serial interfaces 1 (RS232)
