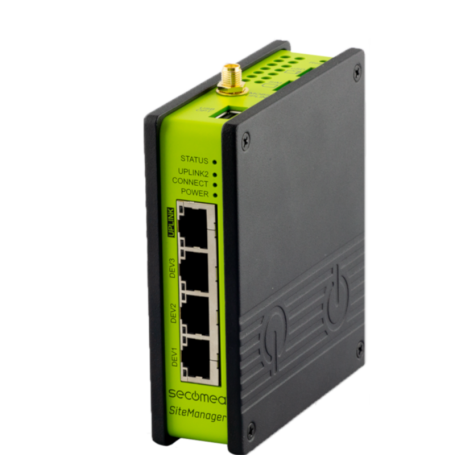

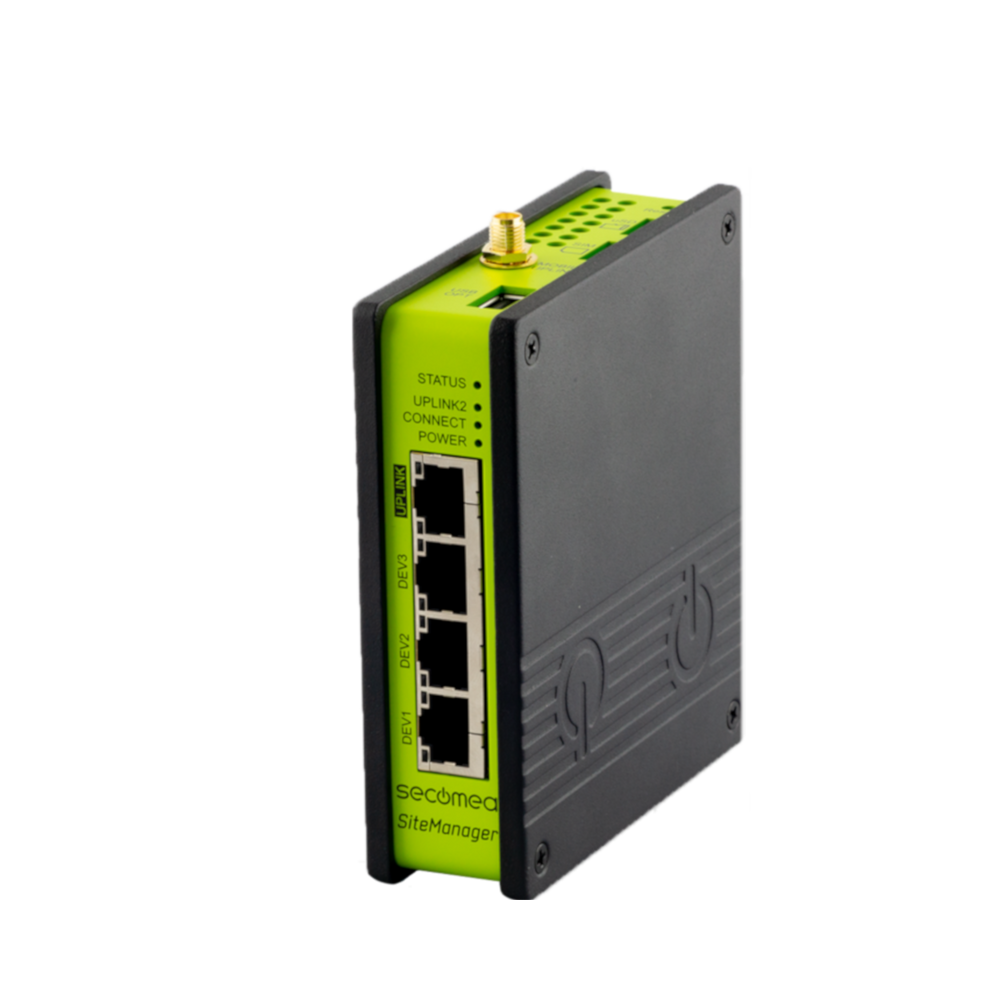

SiteManager 3539-4G Global
Secomea
32222
54540032222
5705966322221
New
on stock
Warning: Last items in stock!
Availability date:
| Supported network technologies | LAN, 3G, Serial, WAN, 4G, USB |
| Technologie Ethernet | 10/100 |
| Standards / Approvals | REACH, CE, UL, FCC, Japan Giteki, RCM, RoHS, cUL |
| SIM Card Slot | 1 x Micro SIM |
| Mounting options | DIN-Rail mounting |
| Number of devices Agents | 100 |
| Technology 3G | Yes |
| Number of USB Ports | 1 |
| Connection type Supply voltage | Connection terminals |
| Technology 4G | Yes |
| Number of RS232 Ports | 1 |
| Technology 2G | Yes |
| Portection rating | IP20 |
| Input voltage range | 12 VDC - 24 VDC |
| Min. ambient temperature | -25.00 Celsius |
| Max. ambient temperature | 55.00 Celsius |
| Number of digital inputs | 2 |
| Technology SMS | Yes |
| Mobile Antenna | 2 x SMA for LTE |
| Number of analog outputs | 1 |
| WIFI Antenna | none |
| GPS Antenna | none |
| number of RJ45 ports | 4 |
| MicroSD-Slot | Yes |
| Operation humidity | 5 to 95% RH (without condensation) |
| Housing | Aluminium |
| Ethernet interfaces | 4 10/100 (1x Uplink, 3x DEV) |
| USB interfaces | 1 (Host V2.0) |
| Serial interfaces | 1 (RS232) |
It can be connected to the Internet via LAN or via the integrated 4G/LTE cellular modem. It supports most Global Frequency Bands (for details on regional 4G-US, 4G-EU, 4G-CH,
4G-JP models can be found in the Secomea knowledgebase). You can connect up to 100 devices of all types of industrial equipment via Ethernet, serial or USB interfaces using the device's own protocols (e.g. Modbus, PROFINET, EtherCAT,EtherNet/IP, etc.). As a further function, the SiteManager enables data acquisition with a persistent store-and-forward database. The SiteManager has 3 DEV/LAN ports that can be configured as bridged (normal switch) or as individually managed ports with separate DHCP servers.
