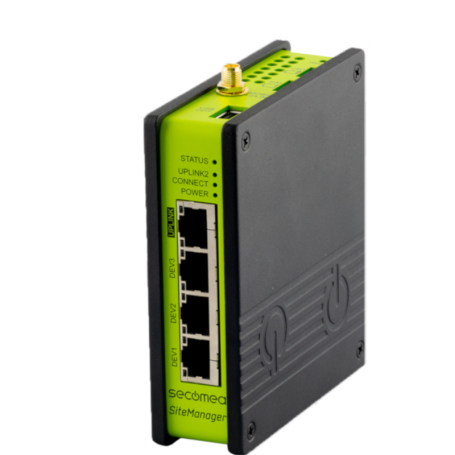

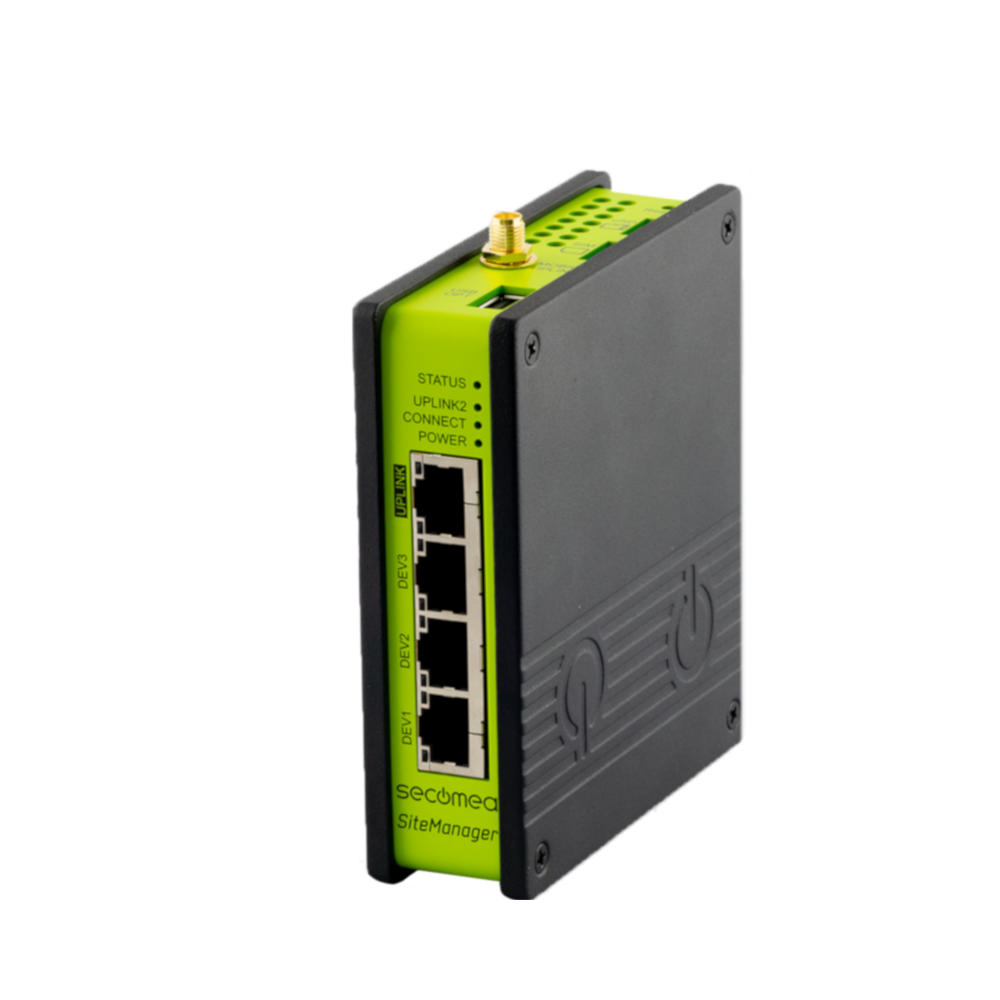

SiteManager 1539-4G Global
Secomea
32221
54540032221
5705966322214
New
on stock
Warning: Last items in stock!
Availability date:
| Supported network technologies | USB, LAN, 3G, Serial, WAN, 4G |
| Standards / Approvals | UL, FCC, Japan Giteki, RCM, RoHS, cUL, REACH, CE |
| Technology 4G | Yes |
| Number of RS232 Ports | 1 |
| Technology 2G | No |
| Technologie Ethernet | 10/100 |
| SIM Card Slot | 1 x Mircro SIM |
| Number of devices Agents | 10 |
| Technology 3G | Yes |
| Number of USB Ports | 1 |
| Connection type Supply voltage | Connection terminals |
| Mounting options | DIN-Rail mounting |
| Portection rating | IP20 |
| Min. ambient temperature | -25.00 Celsius |
| Input voltage range | 12 VDC - 24 VDC |
| Max. ambient temperature | 55.00 Celsius |
| Number of digital inputs | 2 |
| Technology SMS | Yes |
| Mobile Antenna | 1 x SMA for LTE |
| WIFI Antenna | none |
| Number of analog outputs | 1 |
| GPS Antenna | none |
| number of RJ45 ports | 4 |
| MicroSD-Slot | Yes |
| Operation humidity | 5 to 95% RH (without condensation) |
| CPU | ARM Cortex-A7 - 800 Mhz |
| Housing | Aluminium |
| Ethernet interfaces | 4 10/100 (1x Uplink, 3x DEV) |
| USB interfaces | 1 (Host V2.0) |
| Serial interfaces | 1 (RS232) |
It can be connected to the Internet via LAN or via the integrated 4G/LTE cellular modem. It supports most Global Frequency Bands (for details on regional 4G-US, 4G-EU, 4G-CH, 4G-JP models can be found in the Secomea knowledgebase). You can connect up to 10 devices of all types of industrial equipment via Ethernet, serial or USB interfaces using the device's own protocols (e.g. Modbus, PROFINET, EtherCAT,EtherNet/IP, etc.). As a further function, the SiteManager enables data acquisition with a persistent store-and-forward database. The SiteManager has 3 DEV/LAN ports that can be configured as bridged (normal switch) or as individually managed ports with separate DHCP servers.
