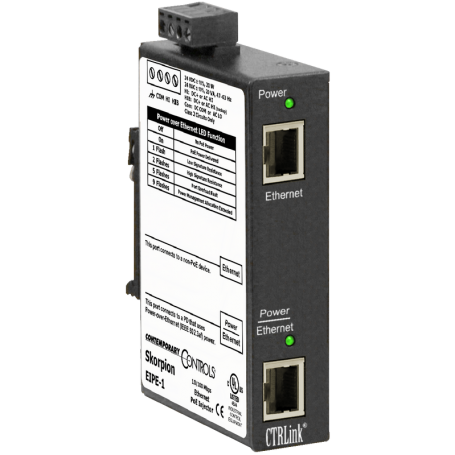

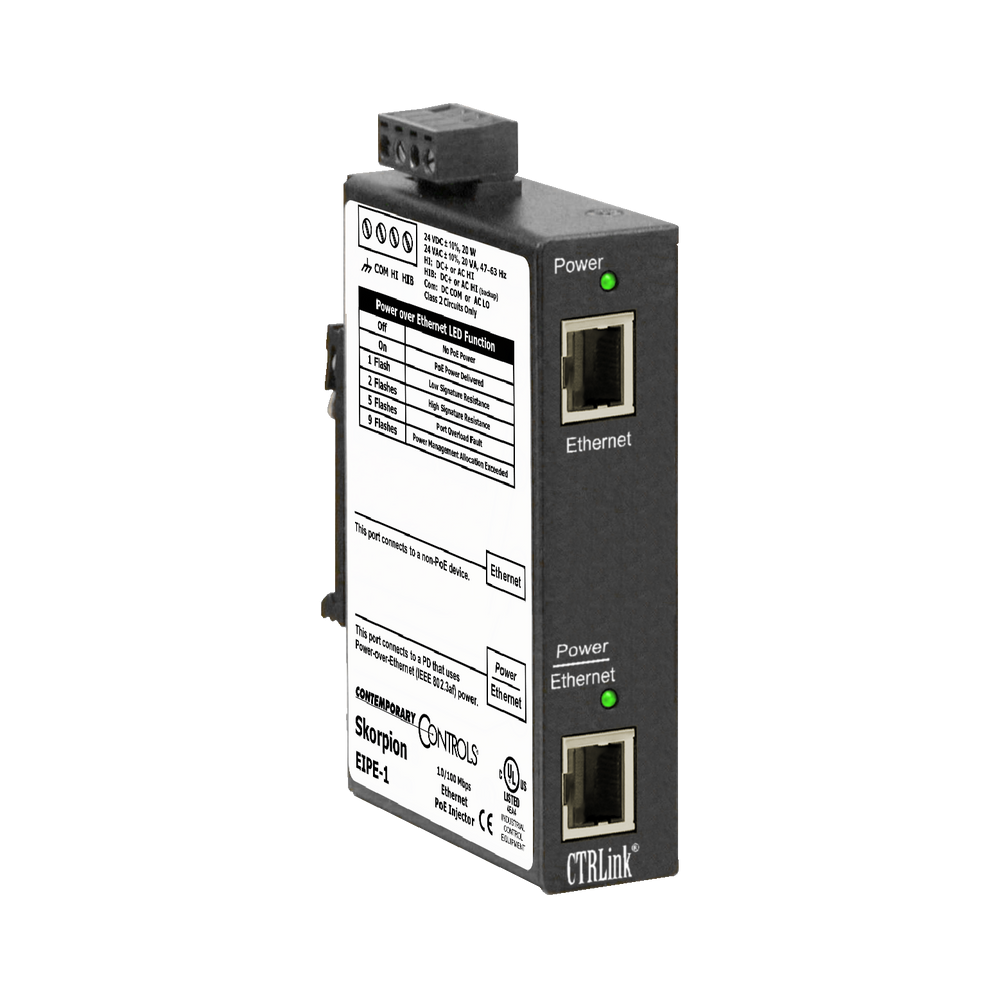

CCONTROLS EIPE-1

Power over Ethernet (PoE) equipment adds power to the data in Ethernet wiring — so that devices such as surveillance and card access machines can be powered via standard Ethernet cabling. Under certain circumstances a non-PoE compliant device can work with the use of the EIPE-2 splitter. If the end device is 10/100 Mbps Ethernet-based but requires 24 VDC to operate, the splitter will accept the combined 48 VDC and data from a power sourcing equipment (PSE) and then generate 24 VDC to provide the end device with separate data and power.
