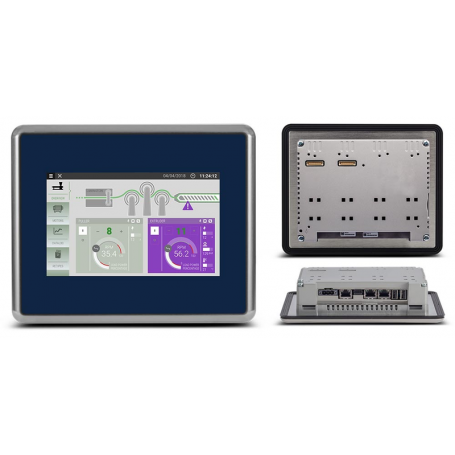

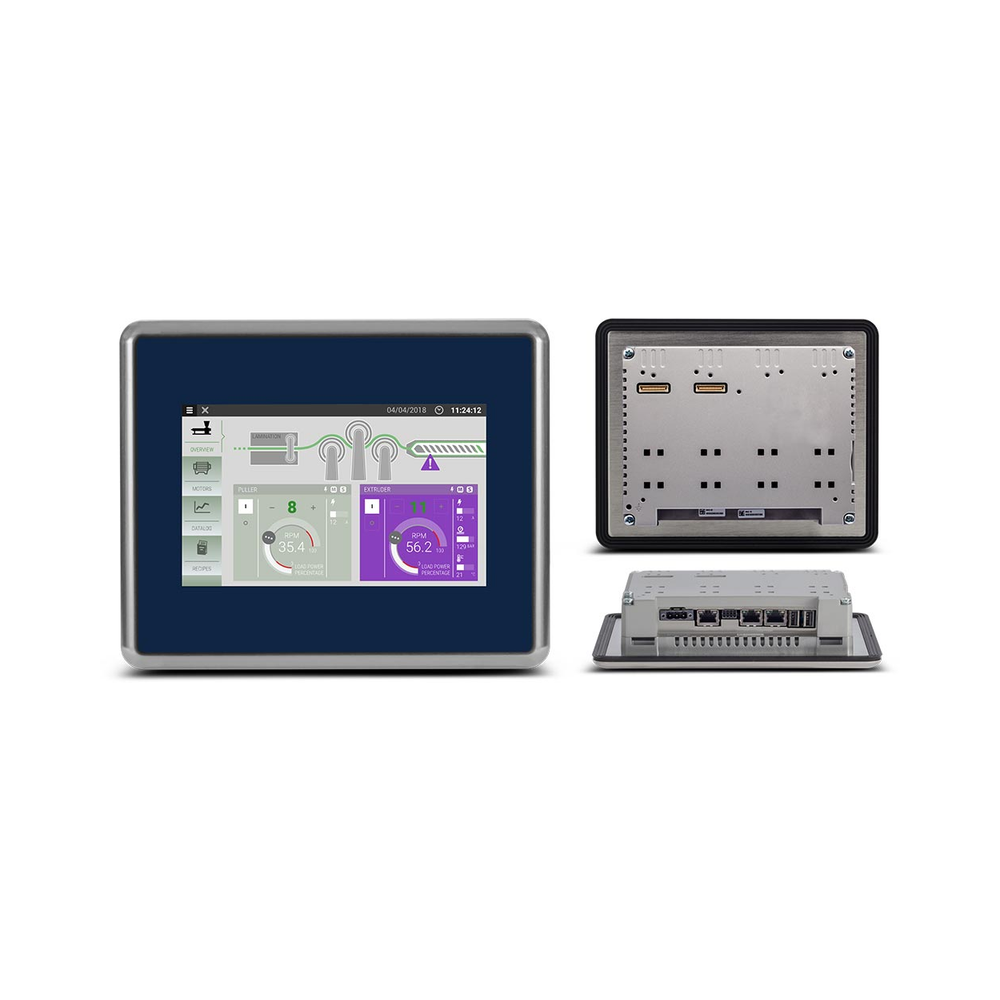

Exor eX707FB, Industrial Touch Panel, 7", 800x480, USB, LAN, IP69

eX707FB

Exor International S.p.A

EX707U4F1

616100EX707U4F1

New

7” widescreen TFT color with multitouch projected capacitive touchscreen. 3 Ethernet ports, 1 serial port, 2 USB ports. JMobile runtime.
Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals UL61010-2-201, DIN EN 61000-6-4, UL61010-1, RCM, DIN EN 61000-6-2
Length 217.00 Millimeter
Display size 7"
Portection rating IP69 (Front) / IP20 (Rear)
Width 177.00 Millimeter
Height 55.00 Millimeter
Voltage (typical) 24.00 Volt
Resolution 800 x 480
Min. ambient temperature -20.00 Celsius
Touchscreen Capacitive Glass Multitouch
Voltage Range (Min.) 10.00 Volt
Max. ambient temperature 60.00 Celsius
Operating system Linux RT
Brightness (cd/m²) 500
Voltage Range (Max.) 32.00 Volt
Current consumption max. 0.70 Ampere
CPU ARM Cortex-A9 dual core 800 MHz
RAM 1.00 Gigabyte
Memory / Flash 4.00 Gigabyte
Ethernet interfaces 3 (1 x 10/100/1000, 2 x 10/100)
USB interfaces 2 (Host V2.0)
Serial interfaces 1 (RS-232,RS-485,RS-422 SW config)
JMobile usable? Yes
