  2. Industrial automation
  3. HMI / Operating Terminals
  4. Industrial Touch Panel
  5. Exor eX700 Series

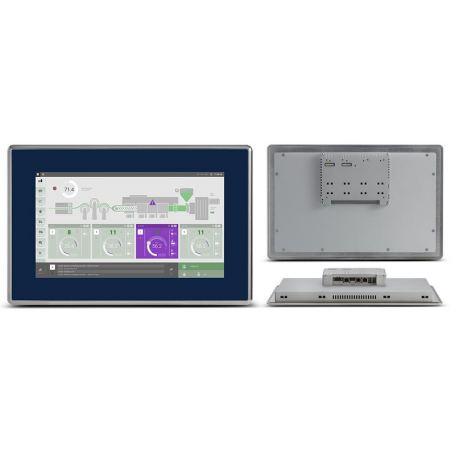

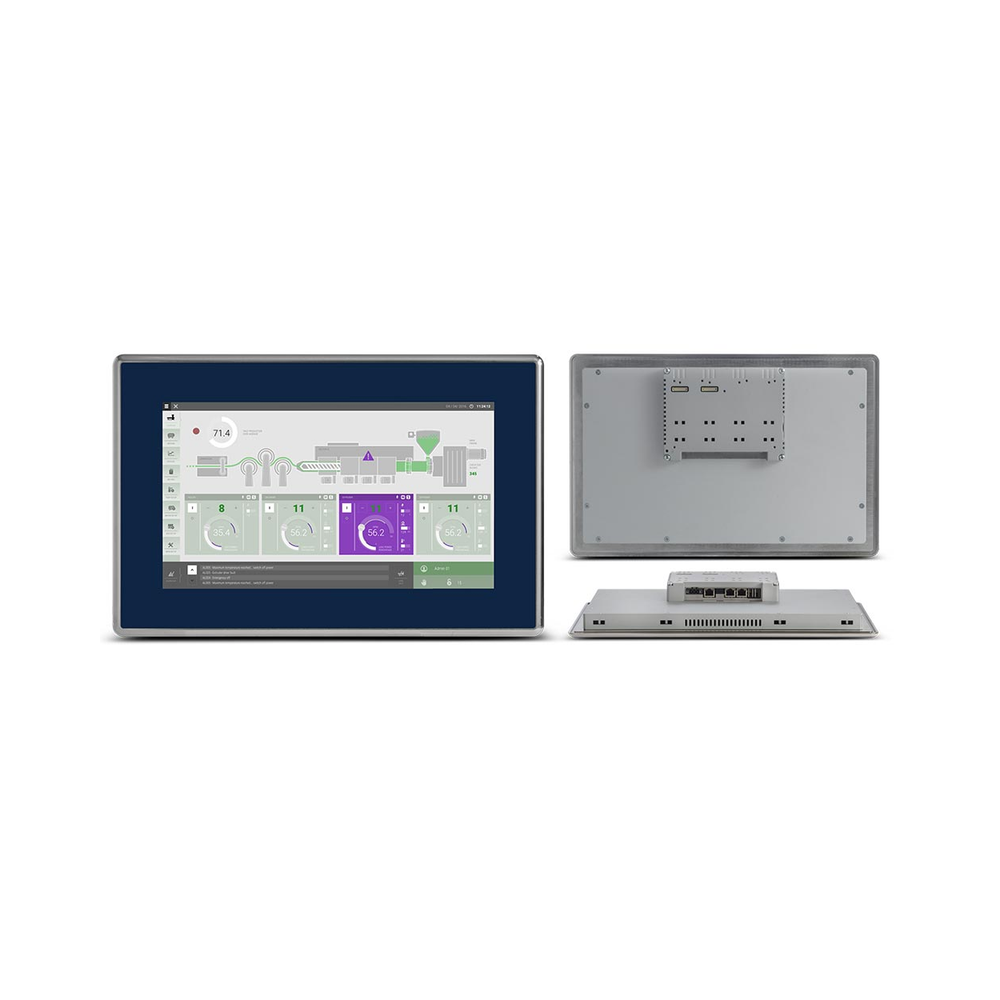

Exor eX715FB, Industrial Touch Panel, 15.6", 1366x768, USB, LAN, IP69

eX715FB

Exor International S.p.A

EX715U4F1

616100EX715U4F1

New

15.6” widescreen TFT color with multitouch projected capacitive touchscreen. 3 Ethernet ports, 1 serial port, 2 USB ports. JMobile runtime.
Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals UL61010-2-201, DIN EN 61000-6-4, UL61010-1, RCM, DIN EN 61000-6-2
Length 450.00 Millimeter
Display size 15.6"
Portection rating IP69 (Front) / IP20 (Rear)
Width 295.00 Millimeter
Height 64.00 Millimeter
Voltage (typical) 24.00 Volt
Resolution 1366 x 768
Min. ambient temperature -20.00 Celsius
Touchscreen Capacitive Glass Multitouch
Voltage Range (Min.) 10.00 Volt
Max. ambient temperature 60.00 Celsius
Operating system Linux RT
Brightness (cd/m²) 400
Voltage Range (Max.) 24.00 Volt
Current consumption max. 1.20 Ampere
CPU ARM Cortex-A9 quad core 800 MHz
RAM 2.00 Gigabyte
Memory / Flash 8.00 Gigabyte
Ethernet interfaces 3 (1 x 10/100/1000, 2 x 10/100)
USB interfaces 2 (Host V2.0)
Serial interfaces 1 (RS-232,RS-485,RS-422 SW config)
JMobile usable? Yes
