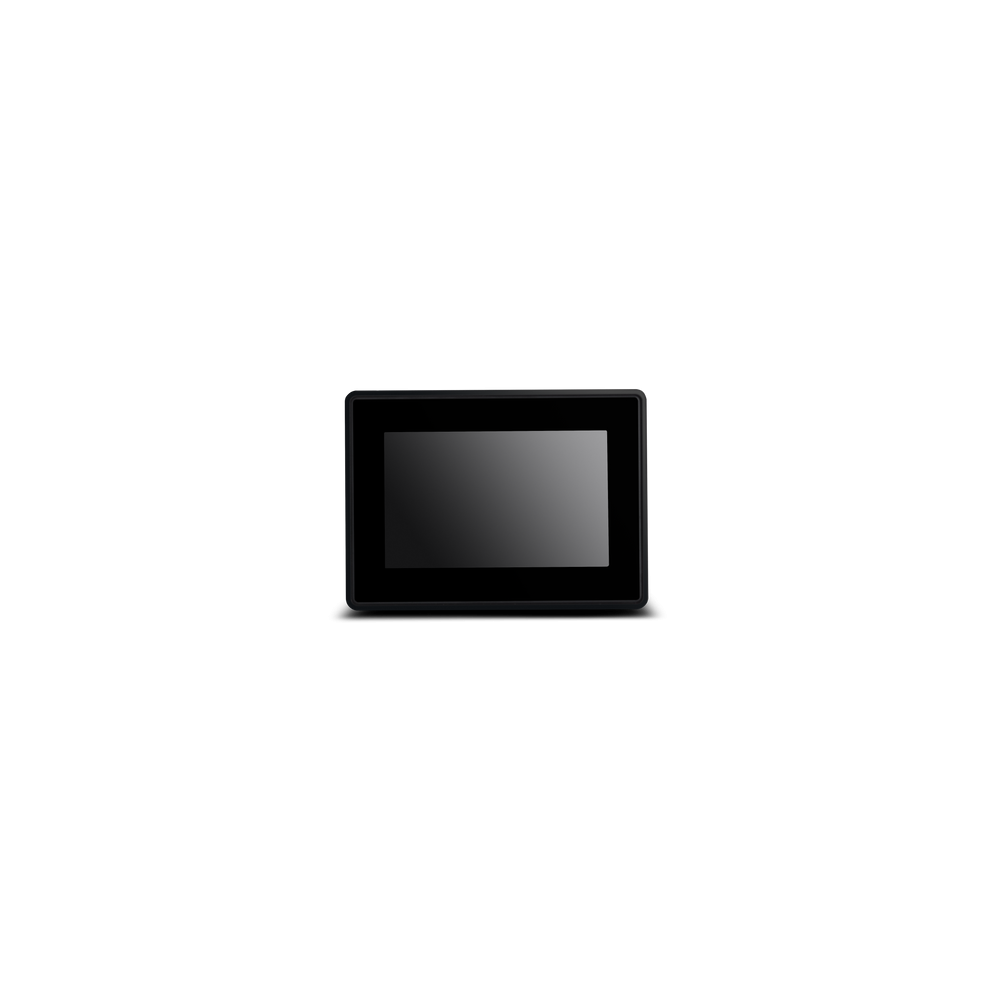

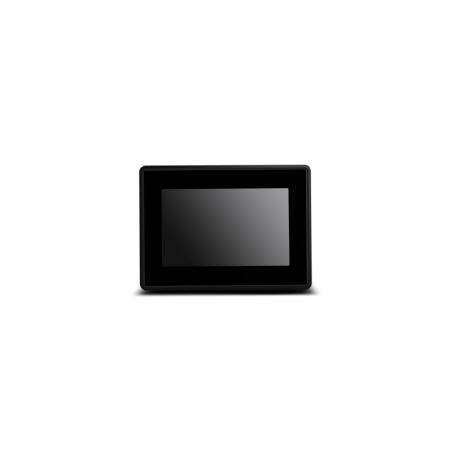

Exor eX705, Industrial Touch Panel, 5", 800x480, USB, LAN, IP66

eX705

Exor International S.p.A

EX705U5P1

616100EX705U5P1

New

5” widescreen TFT color with multitouch projected capacitive touchscreen. 2 Ethernet ports, 1 serial port, 1 USB port. JMobile runtime.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals DNV-GL, IECEx Zone 2/22: Ex nA IIC T5 Gc, Ex tc IIIC T95°C Dc, DIN EN 61000-6-2, UL61010-2-201, ATEX Zone 2/22: II 3 G Ex nA IIC T5 Gc, II 3 D Ex tc IIIC T95°C Dc, DIN EN 61000-6-4, UL61010-1
Length 60.00 Millimeter
Portection rating IP66 (Front) / IP20 (Rear)
Display size 5"
Width 147.00 Millimeter
Resolution 800 x 480
Height 107.00 Millimeter
Voltage (typical) 24.00 Volt
Min. ambient temperature -20.00 Celsius
Touchscreen Capacitive Glass Multitouch
Voltage Range (Min.) 10.00 Volt
Max. ambient temperature 60.00 Celsius
Operating system Linux RT
Brightness (cd/m²) 300
Voltage Range (Max.) 32.00 Volt
Current consumption max. 0.60 Ampere
CPU ARM Cortex-A8 - 1 GHz
RAM 512.00 Megabyte
Memory / Flash 4.00 Gigabyte
Ethernet interfaces 2 (2 x 10/100)
USB interfaces 1 (Host V2.0)
Serial interfaces 1 (RS-232,RS-485,RS-422 SW config)
JMobile usable? Yes

More info

A beautiful product, created within the X Platform and hence with an unsurpassed ability to offer access and scalability into Industry 4.0. The tremendous technical flexibility is backed by a company with 45 years in the industry and still with a market price at previous models.

The eX700 Series represents a ground breaking product to come to market: The Revolutionary IIoT Controller.

The product’s concept permits a prudent investment into the implementation of IIoT and hence Industry 4.0 compatibility.

As such it provides a true all-in-one solution covering many functions such as:

  • As a powerful Browser with industry standard Web engine powering state of the art Chromium browser
  • As a Gateway with up to 3 Ethernet networks, OPC UA pub/sub* Server and Client, future TSN connectivity* and multiple protocols
  • As a powerful HMI using JMobile inside with multitouch operation in a brilliant high resolution display
  • As a PLC with the CODESYS V3 can function as Master through major protocols
