  2. Industrial automation
  3. HMI / Operating Terminals
  4. Industrial Touch Panel
  5. Exor eX700 Series

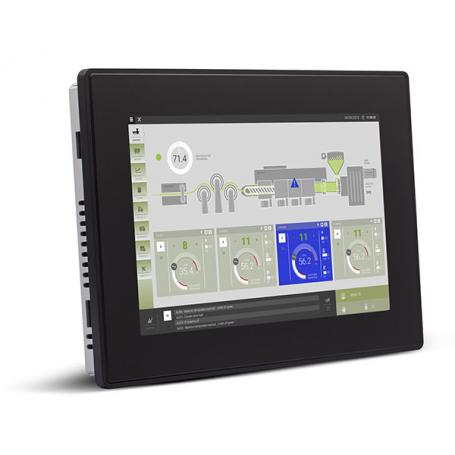

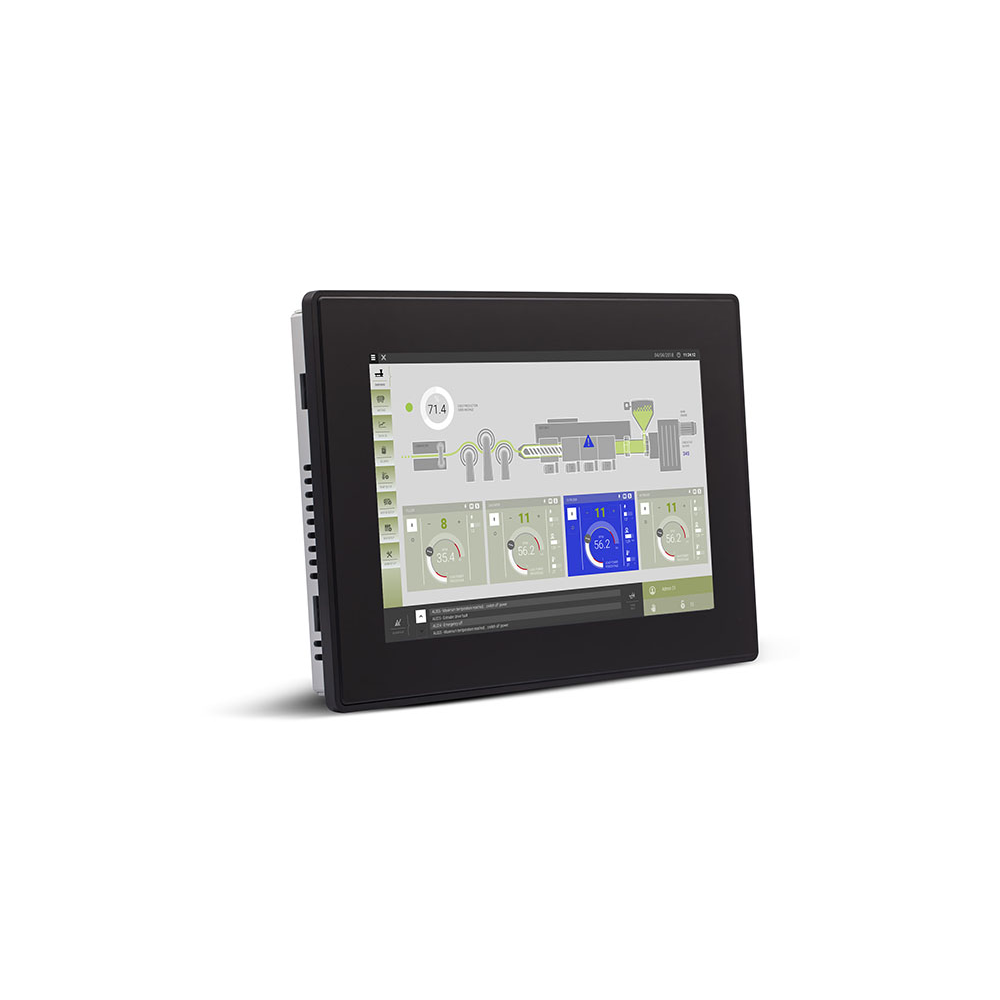

Exor eX710G, Idustrial Touch Panel, 10,1", 1280x800, USB, LAN, IP66

EX710G

Exor International S.p.A

EX710GU5P1

616100EX710GU5P1

New

10.1” widescreen TFT color with multitouch projected capacitive touchscreen. 3 Ethernet ports, 1 serial port, 2 USB ports. JMobile runtime.
Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals Class I Div. 2, UL61010-2-201, CE, UL61010-1, DNV-GL, ATEX Zone 2/22: II 3 G Ex nA IIC T5 Gc, II 3 D Ex tc IIIC T95°C Dc
Length 282.00 Millimeter
Width 56.00 Millimeter
Display size 10.1"
Portection rating IP66 (Front) / IP20 (Rear)
Resolution 1280 x 800
Voltage (typical) 24.00 Volt
Height 197.00 Millimeter
Min. ambient temperature -20.00 Celsius
Touchscreen Capacitive Glass Multitouch
Operating system Linux RT
Voltage Range (Min.) 10.00 Volt
Brightness (cd/m²) 800
Max. ambient temperature 70.00 Celsius
Voltage Range (Max.) 32.00 Volt
Operation humidity 5 to 85% RH (without condensation)
Current consumption max. 1.00 Ampere
CPU ARM Cortex-A9 dual core 800 MHz
RAM 1.00 Gigabyte
Memory / Flash 4.00 Gigabyte
Ethernet interfaces 3 (1 x 10/100/1000, 2 x 10/100)
USB interfaces 2 (Host V2.0)
Serial interfaces 1 (RS-232,RS-485,RS-422 SW config)
JMobile usable? Yes
