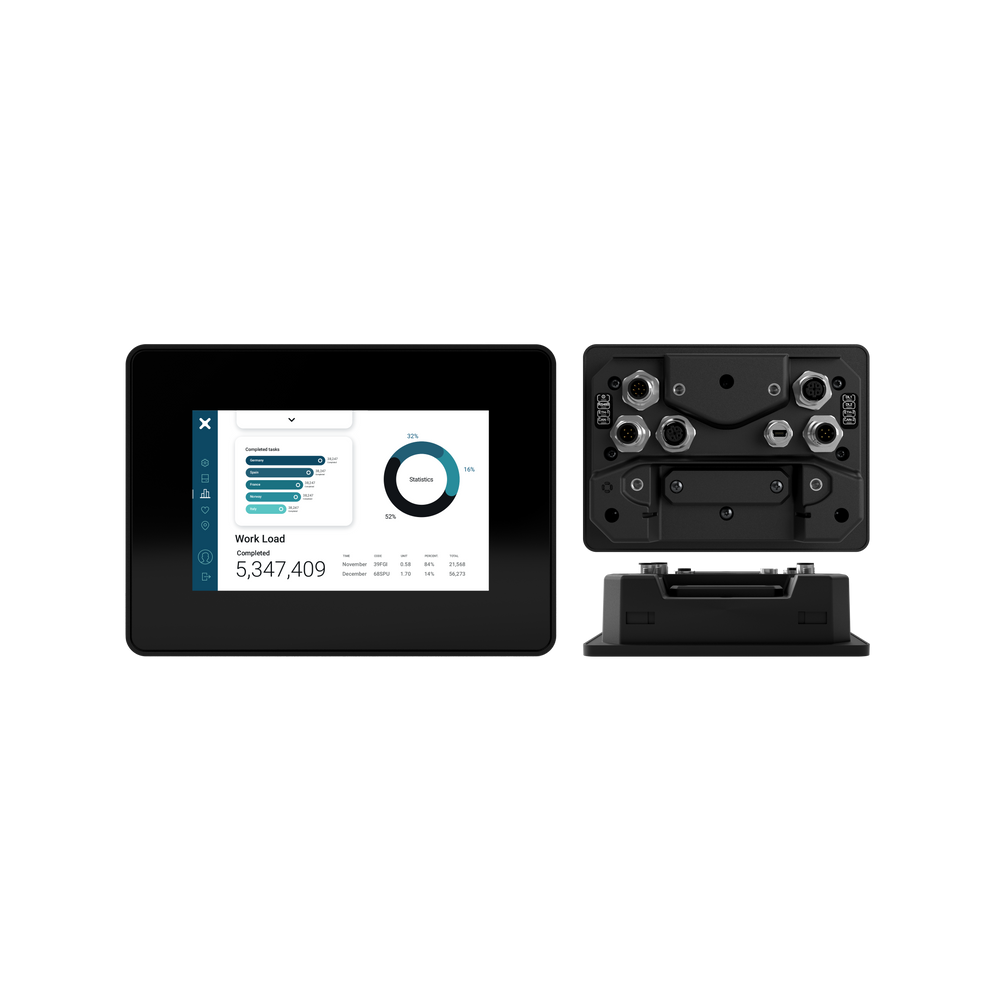

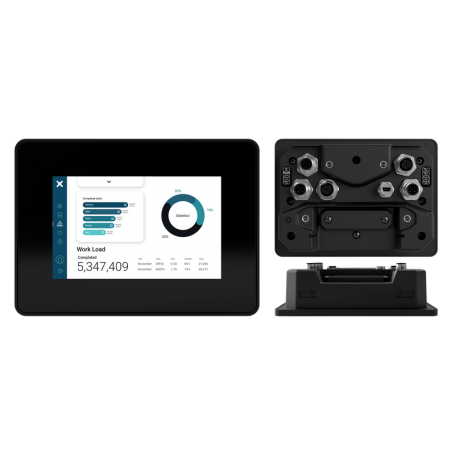

Exor XA5, Industrie Outdoor Touch Panel, 5", 800x480, USB, LAN, WiFi, IP66

XA5

Exor International S.p.A

XA5U5P1

616100XA5U5P1

New

5" TFT colour display, multi-touch projective capacitive touchscreen. 2 Ethernet ports, 2 CAN ports, 1 SSR, WiFi, 1 serial port, 1 USB ports. JMobile runtime. Optional: CodeSys PLC, Corvina Cloud

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Length 158.60 Millimeter
Display size 5"
Portection rating IP66
Width 115.00 Millimeter
Height 50.50 Millimeter
Voltage (typical) 24.00 Volt
Resolution 800 x 480
Min. ambient temperature -40.00 Celsius
Touchscreen Multi-Touch
Input voltage range 24 VDC
Max. ambient temperature 85.00 Celsius
Operating system Linux RT
Brightness (cd/m²) 500
Voltage Range (Min.) 10.00 Volt
Voltage Range (Max.) 32.00 Volt
CPU 32-Bit RISC Dual Core 650 MHz
RAM 1.00 Gigabyte
Memory / Flash 8.00 Gigabyte
Ethernet interfaces 2 (2 x 10/100)
USB interfaces 1 (Host V2.0)
Serial interfaces 1 (RS485)
JMobile usable? Yes

More info
