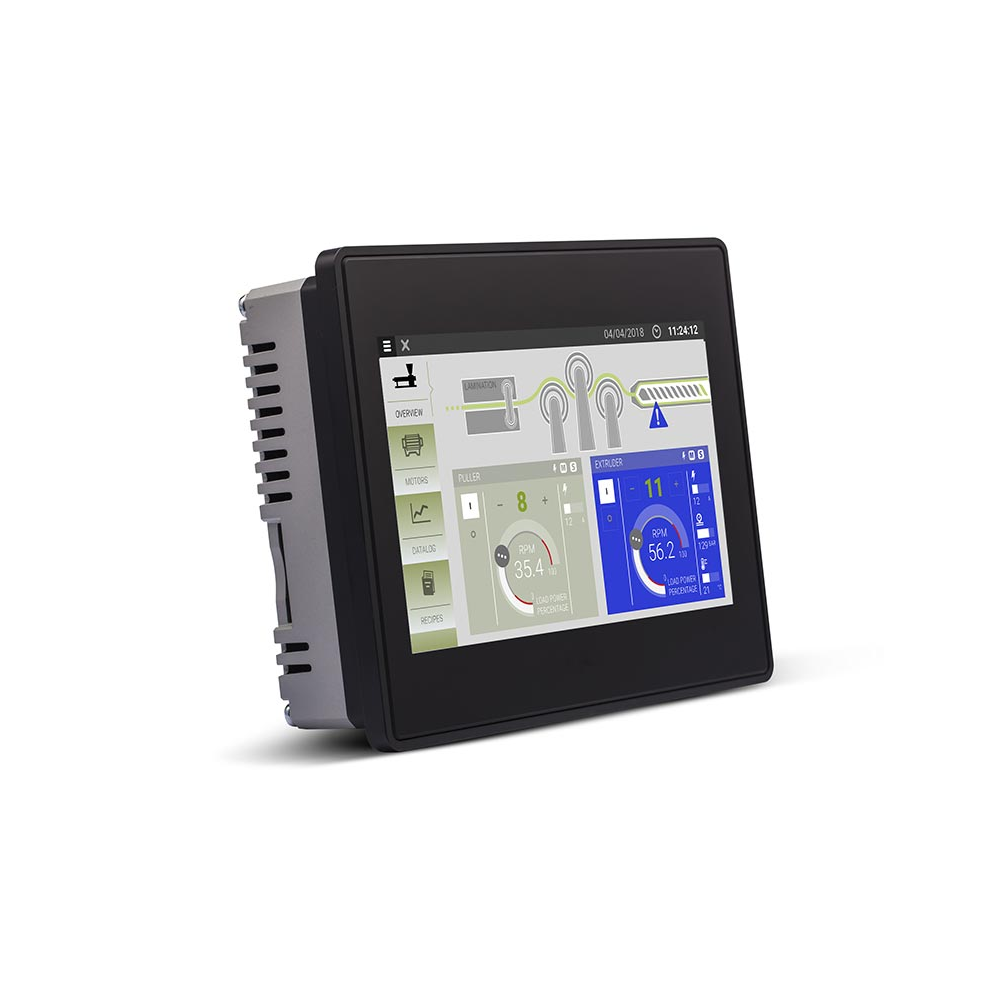

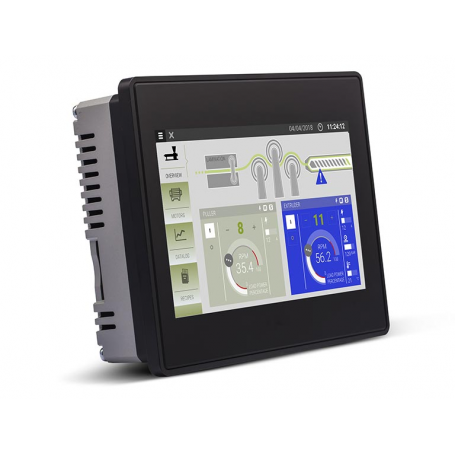

Exor eX707G, Industrial Touch Panel, 7", 800x480, USB, LAN, IP66

eX707G

Exor International S.p.A

EX707GU5P1

616100EX707GU5P1

New

7” widescreen TFT color with multitouch projected capacitive touchscreen. 3 Ethernet ports, 1 serial port, 2 USB ports. JMobile runtime.
Prices are only visible for registered customers. Create an account now.

Data sheet

Length 187.00 Millimeter
Standards / Approvals RCM, UL61010-2-201, CE, Class I Div. 2, UL61010-1, DNV-GL, ATEX Zone 2/22: II 3 G Ex nA IIC T5 Gc, II 3 D Ex tc IIIC T95°C Dc
Portection rating IP66 (Front) / IP20 (Rear)
Width 47.00 Millimeter
Display size 7"
Height 147.00 Millimeter
Resolution 800 x 480
Voltage (typical) 24.00 Volt
Touchscreen Capacitive Glass Multitouch
Min. ambient temperature -20.00 Celsius
Operating system Linux RT
Voltage Range (Min.) 10.00 Volt
Brightness (cd/m²) 600
Max. ambient temperature 60.00 Celsius
Voltage Range (Max.) 32.00 Volt
Operation humidity 5 to 85% RH (without condensation)
Current consumption max. 0.70 Ampere
CPU ARM Cortex-A9 dual core 800 MHz
RAM 1.00 Gigabyte
Memory / Flash 4.00 Gigabyte
Ethernet interfaces 3 (1 x 10/100/1000, 2 x 10/100)
USB interfaces 2 (Host V2.0)
Serial interfaces 1 (RS-232,RS-485,RS-422 SW config)
JMobile usable? Yes
