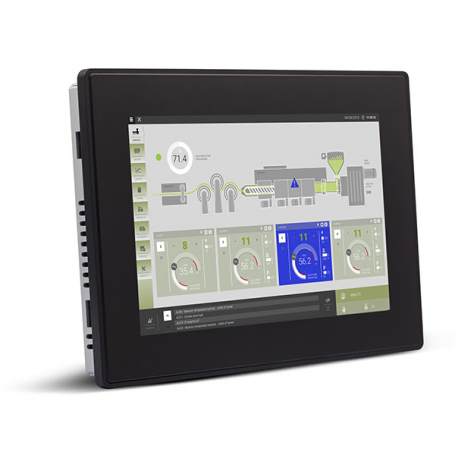

Exor eX710G, Idustrial Touch Panel, 10,1", 1280x800, USB, LAN, IP66

EX710G

Exor International S.p.A

EX710GU5P1

616100EX710GU5P1

New

10.1” widescreen TFT color with multitouch projected capacitive touchscreen. 3 Ethernet ports, 1 serial port, 2 USB ports. JMobile runtime.
Prices are only visible for registered customers. Create an account now.

Data sheet

Standards / Approvals UL61010-2-201, CE, UL61010-1, DNV-GL, ATEX Zone 2/22: II 3 G Ex nA IIC T5 Gc, II 3 D Ex tc IIIC T95°C Dc, Class I Div. 2
Length 282.00 Millimeter
Width 56.00 Millimeter
Display size 10.1"
Portection rating IP66 (Front) / IP20 (Rear)
Resolution 1280 x 800
Voltage (typical) 24.00 Volt
Height 197.00 Millimeter
Min. ambient temperature -20.00 Celsius
Touchscreen Capacitive Glass Multitouch
Brightness (cd/m²) 800
Max. ambient temperature 70.00 Celsius
Operating system Linux RT
Voltage Range (Min.) 10.00 Volt
Voltage Range (Max.) 32.00 Volt
Operation humidity 5 to 85% RH (without condensation)
Current consumption max. 1.00 Ampere
CPU ARM Cortex-A9 dual core 800 MHz
RAM 1.00 Gigabyte
Memory / Flash 4.00 Gigabyte
Ethernet interfaces 3 (1 x 10/100/1000, 2 x 10/100)
USB interfaces 2 (Host V2.0)
Serial interfaces 1 (RS-232,RS-485,RS-422 SW config)
JMobile usable? Yes
