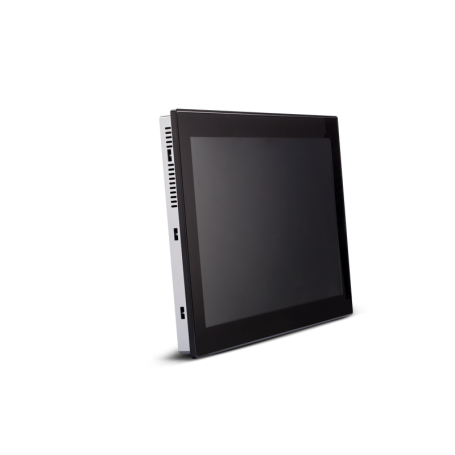

Exor eX721, Industrial Touch Panel, 21", 1920x1080, USB, LAN, IP66

EXOR

EX721

616100EX721U5P1

New

21.5” widescreen TFT color with multitouch projected capacitive touchscreen. 3 Ethernet ports, 1 serial port, 2 USB ports. JMobile runtime.

More details

Prices are only visible for registered customers. Create an account now.

Download

Data sheet

Length64.50 Millimeter
Display size21.5"
Width552.00 Millimeter
Standards / ApprovalsDIN EN 61000-6-4, DIN EN 61000-6-2, UL61010-1, UL61010-2-201, DNV-GL, IECEx Zone 2/22: Ex nA IIC T5 Gc, Ex tc IIIC T95°C Dc, ATEX Zone 2/22: II 3 G Ex nA IIC T5 Gc, II 3 D Ex tc IIIC T95°C Dc
Portection ratingIP66 (Front) / IP20 (Rear)
Voltage (typical)24.00 Volt
Resolution1920 x 1080
Height347.00 Millimeter
TouchscreenCapacitive Glass Multitouch
Voltage Range (Min.)10.00 Volt
Brightness (cd/m²)300
Voltage Range (Max.)32.00 Volt
Current consumption max.1.70 Ampere
Operating systemLinux RT
CPUARM Cortex-A9 quad core 800 MHz
RAM2.00 Gigabyte
Memory / Flash8.00 Gigabyte
Ethernet interfaces3 (1 x 10/100/1000, 2 x 10/100)
USB interfaces2 (Host V2.0)
Serial interfaces1 (RS-232,RS-485,RS-422 SW config)
Min. ambient temperature-20.00 Celsius
Max. ambient temperature60.00 Celsius

More info

A beautiful product, created within the X Platform and hence with an unsurpassed ability to offer access and scalability into Industry 4.0. The tremendous technical flexibility is backed by a company with 45 years in the industry and still with a market price at previous models.

The eX700 Series represents a ground breaking product to come to market: The Revolutionary IIoT Controller.

The product’s concept permits a prudent investment into the implementation of IIoT and hence Industry 4.0 compatibility.

As such it provides a true all-in-one solution covering many functions such as:

  • As a powerful Browser with industry standard Web engine powering state of the art Chromium browser
  • As a Gateway with up to 3 Ethernet networks, OPC UA pub/sub* Server and Client, future TSN connectivity* and multiple protocols
  • As a powerful HMI using JMobile inside with multitouch operation in a brilliant high resolution display
  • As a PLC with the CODESYS V3 can function as Master through major protocols
