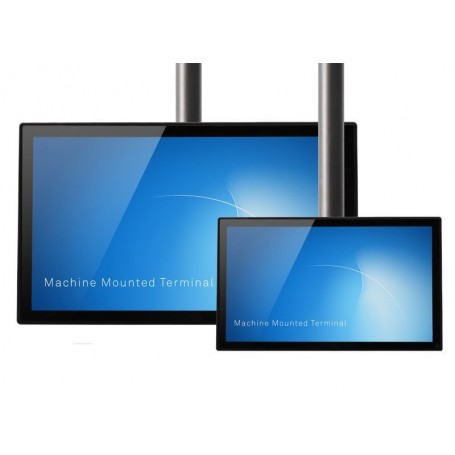

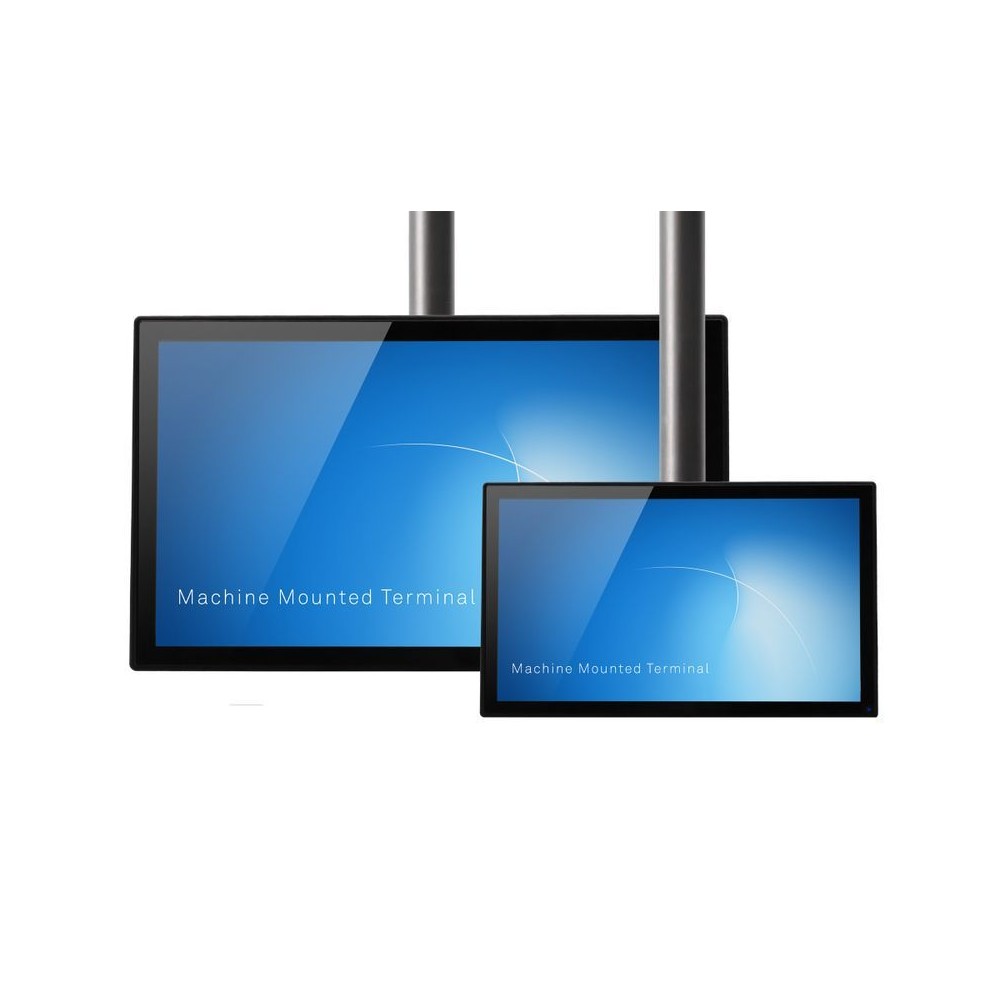

ADS-TEC, MMT Basis 17.3", HD1080, 1920x1080, PCAP-Touch

DVG-MMT8017-028-BZ

ads-tec

DVG-MMT8017-028-BZ

212110DVGMMT8017028BZ

New

Machine Terminals - MMT8000 series Machine mounted terminals - The hygienic compliant IPC solution for production processes The IP65 or IP69K-compliant operating terminals with integrated processor unit are the first fan-free industrial PCs of this performance class available in a compact design. The very latest multi-touch technology provides the ideal platform for modern visualisation of the highest standard. The innovative HYGIENE COMFORT DESIGN is perfectly designed for comfortable and smooth use in hygienic areas. Technology 100% made in Germany

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Portection rating IP65
Display size 17.3"
Resolution 1920 x 1080
Touchscreen PCAP-Touch
Min. ambient temperature 0.00 Celsius
Input voltage range 24 VDC
Operating system Windows 10 IOT Enterprise
Max. ambient temperature 50.00 Celsius
CPU Intel® Core™ i5 4300U 1,9 GHz
RAM 8.00 Megabyte
Memory / Flash 250.00 Megabyte
Ethernet interfaces 2x (1x10/100/1000)
USB interfaces 1x USB 2.0, 2 x USB 3.0

More info

Machine Terminals - MMT8000 series

Machine mounted terminals - The hygienic compliant IPC solution for production processes
The IP65 or IP69K-compliant operating terminals with integrated processor unit are the first fan-free industrial PCs of this performance class available in a compact design. The very latest multi-touch technology provides the ideal platform for modern visualisation of the highest standard. The innovative HYGIENE COMFORT DESIGN is perfectly designed for comfortable and smooth use in hygienic areas. Technology 100% made in Germany.

Robust technology Slim design
• Fully enclosed stainless steel housing
• Available in the protection classes IP65 and IP69K
• Surfaces in glass and stainless steel for optimal and easy cleaning of the device
• Hygienic design according to EHEDG guidelines – Design according DIN EN ISO 14159:2008 (hyg. Design for machines)
• Fanless design
• Chemically toughened front panel
• Optimised heat dissipation through integrated heat pipes
• Implementation of the latest technological standards: Sandwich housing technology consisting of multiple stainless steel and aluminium layers

Comfortable display sizes For extensive system and process visualisation

• 17.3" and 23.8"
• Full HD 1920 x 1080 pixels
• Bright display with a wide viewing angle
• Clearly structured visualisation and control of machines and systems

Simple and intuitive The latest multi-touch technology
• Capacitive multi-touch display for comfortable multi-finger operation
• Operation with gloves is possible
• Anti-reflective front panel

Intel® processor technology of the fourth generation
Supports modern operating systems

• Optional Intel® Celeron® 1.6 GHz or Intel® Core ™ i5 1.9 GHz processors
• Passive cooling with heat-pipe technology
• DDR3 1600 MHz memory technology

Connections Securely connected
Interfaces on the MMT back:
2 x Ethernet (10/100/1000 Mbits / s)
1 x 24 VDC
1 x USB 2.0 / 2x USB 3.0 (Optional 1 x externally accessible)

Operating Systems The basis of your applications
Available operating systems for the MMT8000 series
• Windows® 10 IoT Enterprise
• IGEL Linux
• Linux

NEW Now also available with front seal in Hygienic Blue

Especially for COP (Cleaning off place) cleaning in hygienically sensitive areas, the front seal in Hygienic Blue developed according to EHEDG standards can be used without hesitation in the food, chemical, and pharmaceutical industries as well as in cleanroom technology.

Installation made easy Flexible rotation and tilting
• For 48 mm support arm systems
or VESA connection
• Rotatable and tiltable mounting adapter
• Elegant design and compact form
• Stand or support arm mounting possible
• Concealed cable routing through support arm and mounting adapter

Product features

Powerful
Thanks to the Intel® processor technology, the MMT8000 series delivers performance without compromises.

Fanless Design
The sophisticated passive cooling concept does not require a fan and allows the use of powerful Intel® processors at the same time. This provides a maintenance-friendly design.

Robustness
The MMT series is shockproof according IK08 and is designed for heat and cold. The front screen is anti-reflective and made of tempered glass with shatter protection film.

Multi-Touch-Technology
Capacitive multi-touch display for comfortable multi-finger operation with anti-reflective front screen. Operation with gloves is as well possible.

Radio – Wifi, Bluetooth
The latest WLAN standards for optimum roaming behaviour and Bluetooth for connecting scanners, etc.

Flexible mounting
Elegant design and compact construction for 48 mm support arm systems or VESA connection. Rotatable and tiltable mounting adapters for a stand or support arm mounting.

Protection classes
The MMT-series is available in protection classes IP65 and IP69K - dust-tight, protection against water penetration and resistant to alkalis and acids when using commercially available cleaning agents. Optimal for use in the food, beverage, pharmaceutical and chemical industries.

Accessories

Tried-and-tested machine operation Functions operated by pushbutton
• Extended machine control panel
• Up to 7 freely programmable 22.5 mm pushbutton elements
• PC and control panel can be installed and removed separately from each other
• Cable routing through support arm and adapter
• Standard version or customer-specific variants of machines and systems

Software

X-Remote Remote operation via Ethernet
For real-time operation of linked systems and processes ADS-TEC has developed a remote protocol, with which the user can remotely operate mobile or fixed thin client applications.

› more details

Secure connection in the event that service should be necessary
With the ADS-TEC Big-LinX® IIoT client

With the Windows-based client, always stay securely connected to ensure smooth operation with the OPC series. Secure connection by means of Smartcard-secured VPN tunnel. Software, firmware and bios are always kept up-to-date via the connection to the ADS-TEC Big-LinX IoT service platform.

Zertifikat

Certified cleanroom suitability up to GMP A/B

The Fraunhofer IPA Institute examined the product for its suitability for the cleanroom and prepared an expert opinion according to defined criteria such as materials used and construction. According to the results of the Fraunhofer Institute, the product achieves cleanroom suitability up to GMP A/B and receives the seal Tested Device®. The seal meets the requirements of EHEDG, ISO 14159-1 and DIN EN 1672-2. Cleanroom suitability is one of the most important criteria in clean or hygienic areas of industry and research. Class A is the highest / purest level.

ADS-TEC Services

ADS-TEC Service Packages Extended Warranty in Basic, Silver and Gold
For the coverage of technical failures, it is possible already to complete an extended service when buying a ADS-TEC Industrial IT product over the legal guarantee out. So is also a hedge against long-term maintenance costs due to technical failures realized.
