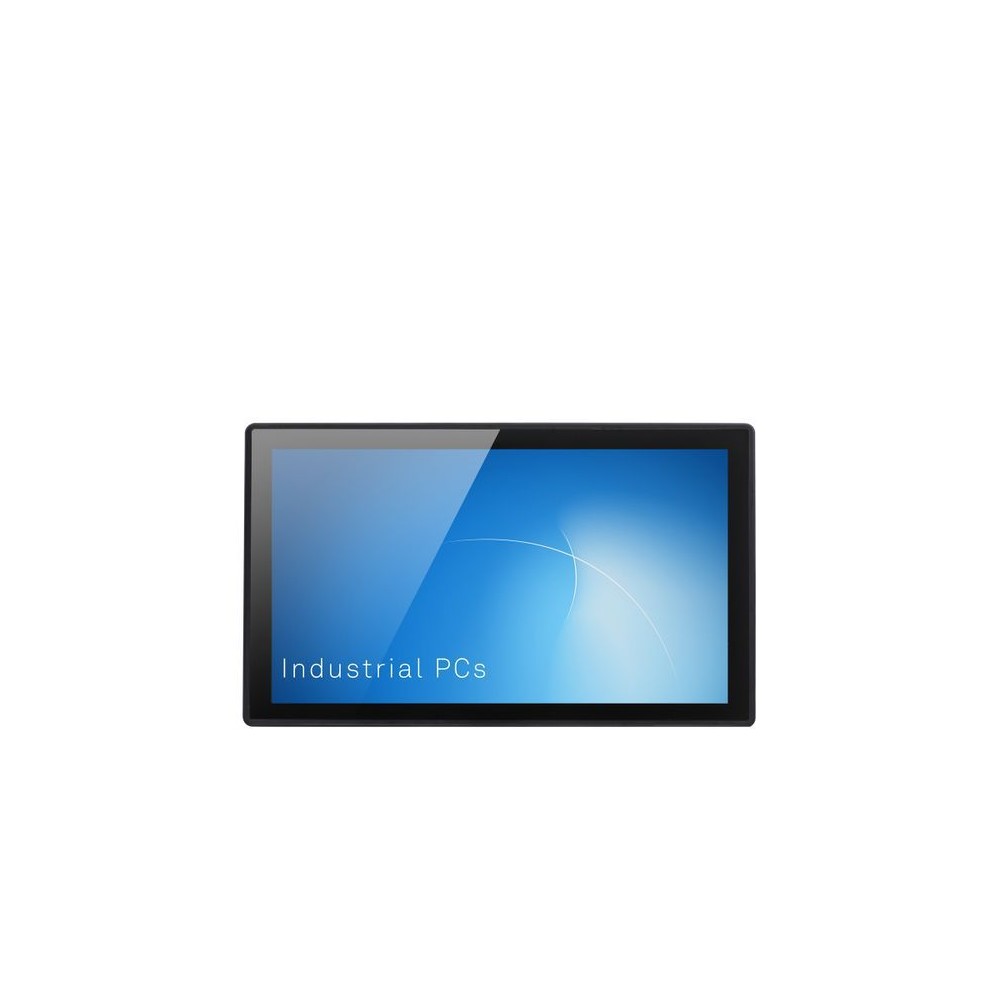

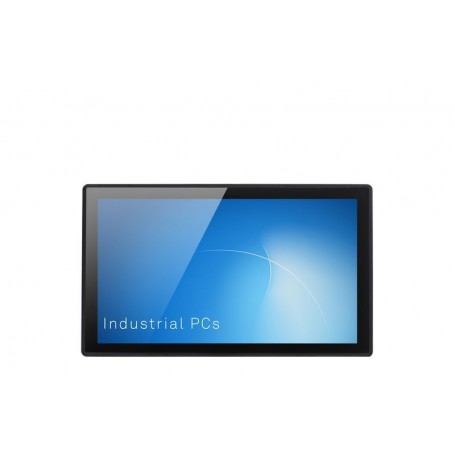

ADS-TEC OPC Basis 17,3'' Full-HD 1920 x 1080, PCAP-Touch, Intel Core i5

DVG-OPC8017-016-BZ

ads-tec

DVG-OPC8017-016-BZ

S-021-155920

New

A Human Machine Interface (HMI) of the OPC8000 series bounces off everything: Above all, dust and water cannot harm it. Thanks to the thermally hardened and anti-reflective glass pane, the front of the HMI is also protected against harsh conditions.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Length 433.00 Millimeter
On, off switch No
Splinter protection No
Width 263.00 Millimeter
Display size 17.3"
Portection rating IP65
Height 88.00 Millimeter
Resolution 1920 x 1080
Input voltage range 24 VDC
Min. ambient temperature 0.00 Celsius
Touchscreen PCAP Multi-Touch
Operating system Windows 10 IOT Enterprise
Max. ambient temperature 50.00 Celsius
Operation humidity 10 bis 85% (without condensation)
CPU Intel® Core™ i5 4300U 1,9 GHz
RAM 8.00 Gigabyte
Memory / Flash 250.00 Gigabyte
USB interfaces 2 x USB 3.0, 1x SD card slot, 1x USB 2.0

More info
