  2. Industrial IT
  3. Industrial PC
  4. Panel PC
Previous Next

IPC Basis 4x USB 3.1 Gen. 2, 1x DisplayPort, 1x Smartcard-Reader

DVG-IPC9000-005-BZ

ads-tec

DVG-IPC9000-005-BZ

212110DVGIPC9000005BZ

New

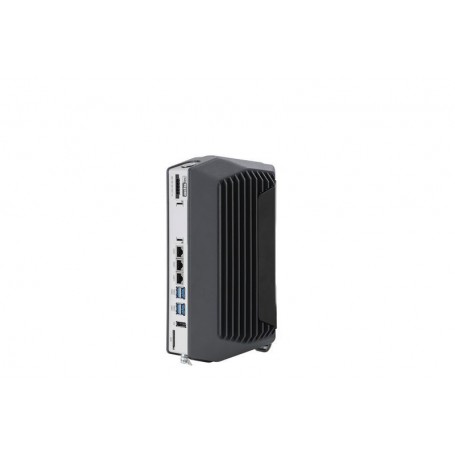

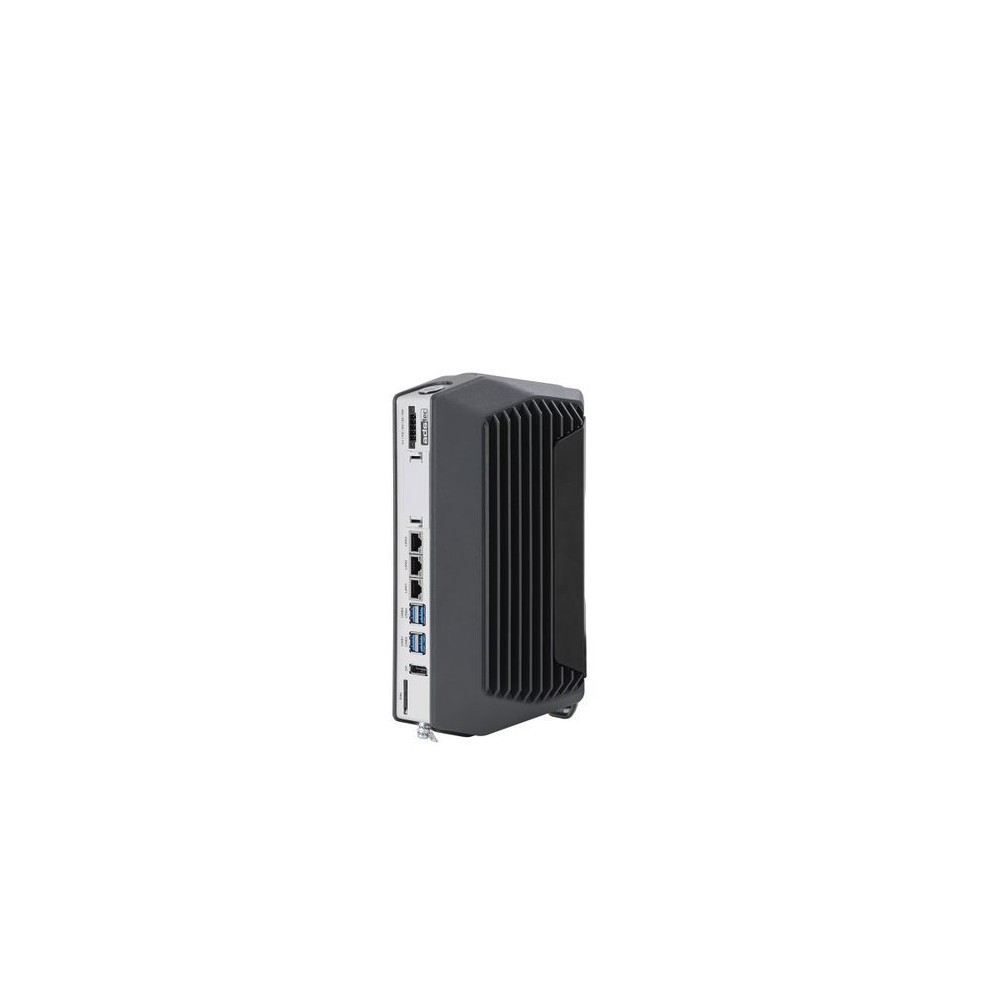

Industrial Box PC - IPC9000 Industrial PCs High-performance Box PC IPC9000 series of the latest generation The new, long-term available ADS-TEC industrial PCs of the IPC9000 series for control cabinet installation deliver high performance without compromise: The sophisticated passive cooling concept does not require a fan and at the same time allows the use of powerful Intel® Celeron® and 8th Gen Intel® Core™ processors. Technology 100% Made in Germany.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Portection rating IP20
Min. ambient temperature 0.00 Celsius
Input voltage range 24 VDC
Operating system Windows 10 IOT Enterprise
Max. ambient temperature 55.00 Celsius
CPU Intel® Core™ i5 8365UE Quad-Core 1.60 GHz
RAM 8.00 Megabyte
Memory / Flash 128.00 Megabyte
Ethernet interfaces 3 (1 x 10/100/1000, 2 x 10/100)
USB interfaces 4 x USB 2.0

More info

Industrial Box PC - IPC9000
Industrial PCs High-performance Box PC IPC9000 series of the latest generation
The new, long-term available ADS-TEC industrial PCs of the IPC9000 series for control cabinet installation deliver high performance without compromise: The sophisticated passive cooling concept does not require a fan and at the same time allows the use of powerful Intel® Celeron® and 8th Gen Intel® Core™ processors. Technology 100% Made in Germany.

Strong performance For high demands
• Current Intel® Celeron® 4305UE and Intel® Core™ i5-8365UE processors of the 8th generation (Whiskey Lake)
• Main memory for demanding applications with up to 32 GB fast DDR4 RAM
• Flash SSD mass storage optionally as RAID configurable

 Service-friendliness & quick installation Convenient and simple
• Lateral service access for uncomplicated and quick access to flash SSD and CMOS battery
• Separate mounting plate for safe and at the same time simple attachment by hanging - even in difficult installation situations (top-hat rail mounting is not possible)

Integrated HDBaseT transmitter module The additional option for longer distances
The optionally integrable HDBaseT transmitter module allows transmission of multimedia signals (image, sound, touch operation) up to 100 m via a single cable. The ideal solution for remote application environments in combination with industrial monitors from ADS-TEC such as our OPD series or MMD series.

Communication module extension for all leading industrial protocols
With the optionally available Hilscher netJACK modules, a wide variety of fieldbus types as well as Real Time Ethernet can be integrated into the IPC9000 as master or slave. The integration can be carried out quickly and easily without any tools. This offers enormous flexibility.


Big -LinX ® IIoT Client Secure connection in case of service
• Smart card-secured VPN tunnel (software certificate also possible as an option)
• Including X-Remote for secure image transmission
• Configurable and secure data push for the provision and visualization of remote maintenance or other Big -Data applications
• Keep your devices' software, firmware and BIOS up-to-date

product properties

Powerful Thanks to the latest 8th generation Intel® processor technology (Whiskey Lake), the IPC9000 delivers uncompromising performance.

Fanless design
The sophisticated cooling concept does not require a fan and at the same time allows the use of powerful Intel® processors. This offers a service-friendly design.

Simple installation
The IPC9000 can be installed quickly and easily thanks to the separate mounting plate.

Raid System (Optional)
In Raid mode , the data can be safely stored on the IPC9000.

 Big -LinX ® Ready
Using an encrypted smart card via the SIM card slot, a connection to the IIoT service & maintenance platform "Big -LinX " can be easily established for remote maintenance of machines / systems and collection of machine data.

hardware
Monitor solutions made by ADS-TEC
For an optimal monitor solution optionally with HDBaseT receiver, ADS-TEC offers a stainless steel solution with IP69K as well as panel displays for installation.

software
X-Remote remote control via Ethernet
ADS-TEC has developed a remote protocol for real-time control of interlinked systems and processes, with which the user can remote control applications via mobile or permanently installed thin clients.

Secure connection in case of service With the >>Big -LinX ® IIoT Client<< from ADS-TEC
Always be securely connected with the Windows-based client to ensure smooth operation. Secure connection via smart card secured VPN tunnel. Software, firmware and BIOS can always be kept up to date via the connection to the ADS-TEC IIoT service & maintenance platform BigLinX.

ADS TEC Services
ADS-TEC Service Packages Extended Warranty in Basic, Silver and Gold
To cover technical failures, there is the option of purchasing an extended service when purchasing an ADS-TEC Industrial IT product. In this way, long-term protection against repair costs due to technical failures can be implemented.
