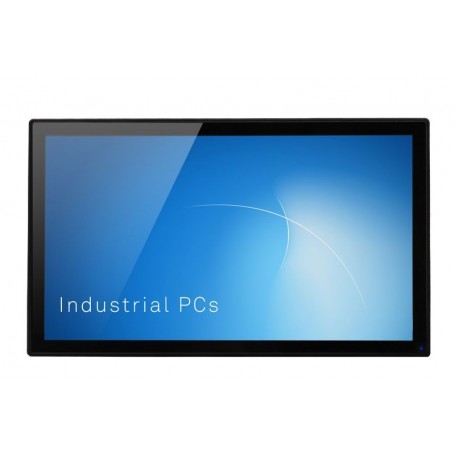

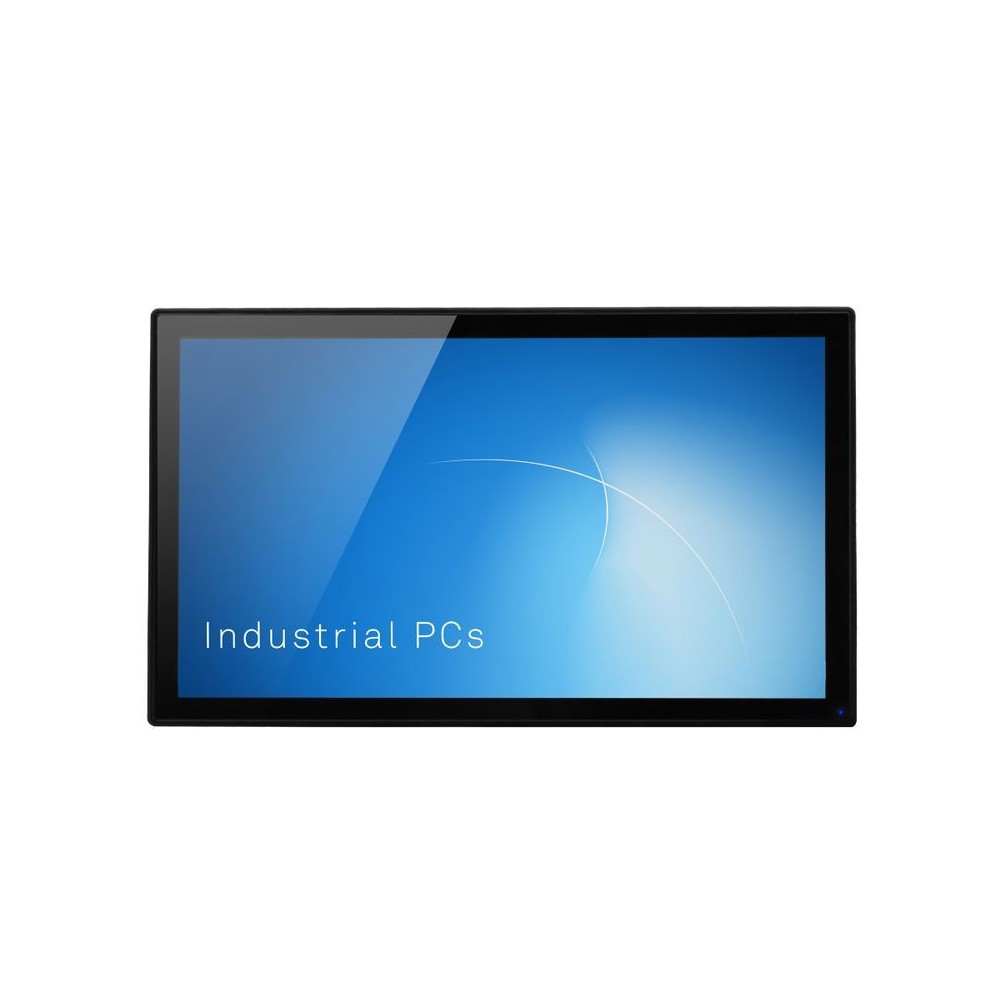

ADS-TEC OPC Basis 23,8'' Full-HD 1920 x 1080, PCAP-Touch, Intel Core i5

DVG-OPC8024-007-BZ

ads-tec

DVG-OPC8024-007-BZ

S-021-155922

New

A Human Machine Interface (HMI) of the OPC8000 series bounces off everything: Above all, dust and water cannot harm it. Thanks to the thermally hardened and anti-reflective glass pane, the front of the HMI is also protected against harsh conditions.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

On, off switch No
Splinter protection No
Length 580.00 Millimeter
Width 349.00 Millimeter
Display size 23.8"
Portection rating IP65
Resolution 1920 x 1080
Height 88.00 Millimeter
Input voltage range 24 VDC
Min. ambient temperature 0.00 Celsius
Touchscreen PCAP Multi-Touch
Max. ambient temperature 45.00 Celsius
Operating system Windows 10 IOT Enterprise
Operation humidity 10 bis 85% (without condensation)
CPU Intel® Core™ i5 4300U 1,9 GHz
RAM 8.00 Gigabyte
Memory / Flash 250.00 Gigabyte
Ethernet interfaces 2 x 1 GBit/s Ethernet RJ45
USB interfaces 1x SD card slot, 1x USB 2.0, 2 x USB 3.0
