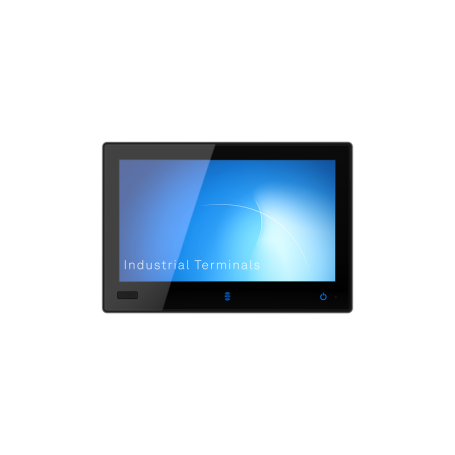

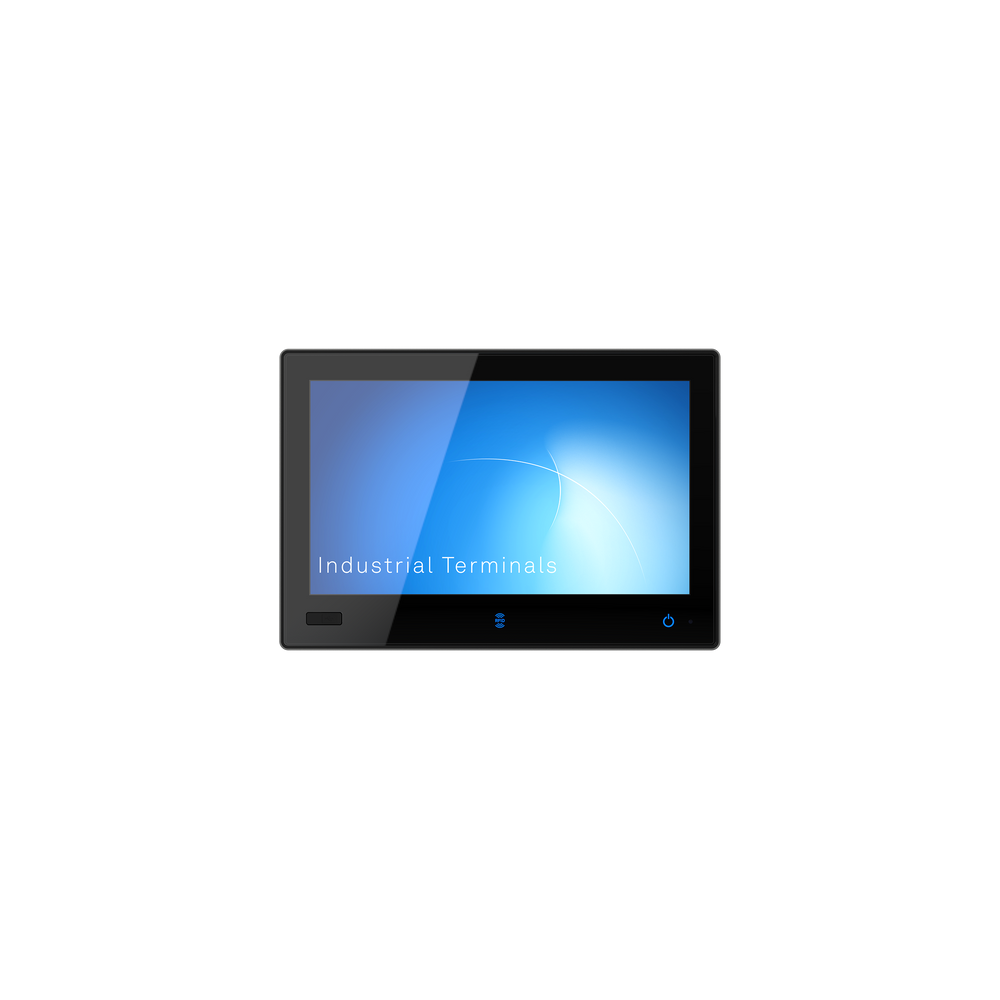

ADS-TEC MES9000 Basis 15.6" Full-HD, PCAP Multi-Touch, Intel Celeron, 230V AC

DVG-MES9016-030-BZ

ads-tec

DVG-MES9016-030-BZ

S-021-155928

New

MES9000 as an HMI panel PC impresses not only with its high performance and simple integration into the machine or system, but also with the outstanding user-friendliness of the large multi-touch display and the contemporary design.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Splinter protection No
On, off switch Yes
Length 400.00 Millimeter
Portection rating IP65
Display size 15.6"
Width 270.00 Millimeter
Height 80.00 Millimeter
Resolution Not specified
Touchscreen PCAP Multi-Touch
Input voltage range 230 V
Min. ambient temperature 0.00 Celsius
Voltage Range (Min.) 0.00 Volt
Max. ambient temperature 40.00 Celsius
Operating system Windows 10 IoT Enterprise 2021 LTSC, IGEL Linux
Brightness (cd/m²) 450
Voltage Range (Max.) 0.00 Volt
Power consumption (W) 0.00 Watt
CPU Intel® Celeron® 4305UE 2,0 GHz
RAM 8.00 Gigabyte
Memory / Flash 128.00 Gigabyte
Analog Interfaces 1 x Smartcard-Reader für ADS-TEC Big-LinX, 1 x DisplayPort++ (1.2)
Ethernet interfaces 3 x Ethernet (10/100/1000 Mbit/s)
USB interfaces 4 x USB 3.1 Gen. 2
JMobile usable? No
