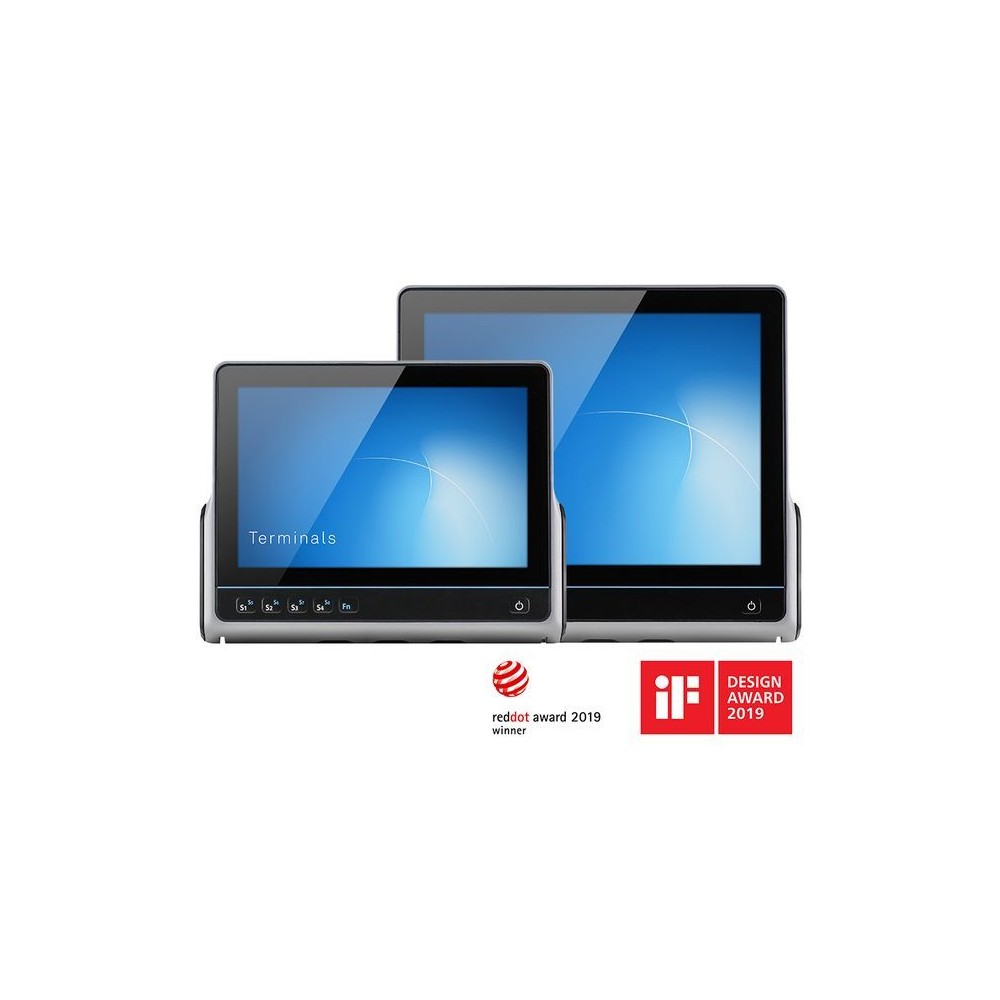

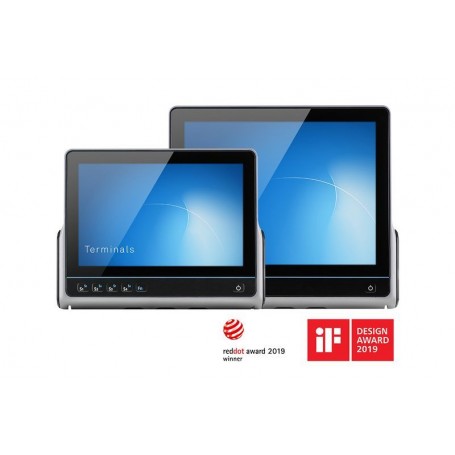

ADS-TEC VMT Basis 12,1'' TFT, XGA 1024 x 768

Vehicle Terminals - VMT9000 Series

Industrial IT platforms for warehousing, logistics, agricultural and construction machinery
You can rely on that. For more than three decades, ADS-TEC has always offered up-to-date and powerful PC technology in an industrial design. Our complete depth of development and state-of-the-art processes are the basis for customer-oriented products and individual solutions. Technology 100% Made in Germany - a good feeling for ADS-TEC customers.

Compact design Proven and stable
• A solidly manufactured die-cast aluminum housing in conjunction with a front panel in 3 mm glass pane, thermally hardened and anti-reflective, is the basis for maximum stability and the most compact design
• Extremely shatterproof (IK08) and abrasion-resistant fronts


Bad weather doesn't matter
• IP66 - all-round protection against dust and moisture
• Rubberized cable bushing to protect all interfaces

Radio communication Invisibly connected
• Optional WLAN module IEEE 802.11a/b/g/n/ac/ax, for optimal reception
• Antennas for WLAN/RFID to protect against destruction and theft Integrated in the front panel
• Connection for external antenna possible

Various display sizes For the right view
• 10.4" TFT display with a resolution of 1024 x 768 pixels
• 12.1" TFT display with a resolution of 1024 x 768 pixels
• 12.1" TFT wide display with a resolution of 1280 x 800 pixels
• 15" TFT display with a resolution of 1024 x 768 pixels

Flexible operation Latest Touch Tec hnology
• Choice between resistive and capacitive touch screens
• Operation with fingers, gloves or special pens
• Simple and intuitive: Drag, swipe, rotate, zoom
• Convenient operation of machines and systems
• Convenient operation via five front buttons

Sensors User-friendly operation
• Automatic brightness adjustment
• Integrated approach and acceleration sensor
• User identification via RFID

Performance Optimal for every application
• Current Intel Atom® processors
• Up to 8GB DDR4 RAM
• Store data securely on 64 GB eMMC

Installation A good figure in every situation

Practical stainless steel brackets for vehicles, forklifts, machines and systems ensure a secure fit and convenient adjustment options using Nord-Lock wedge lock washers and Nord-Lock locking screws
• All adapters made of wear-resistant stainless steel
• VESA 75
• Table/ vehicle holder
• Mounting bracket

 Acoustic perception Through audio
• Two integrated loudspeakers on the back as acoustic signal

 transmitters Service friendliness Fanless and easily accessible
• Fanless with the latest Intel Atom ® Processors
• No fan failures, even in rough outdoor conditions
• Screwed service slot on the back with rubber cable bushings to protect the interfaces

Operating systems The basis of your applications
Available operating systems for the VMT9000 series
• Windows® 10 IoT Ent erprise
• IGEL Linux
• Linux

Connections A secure connection
• Strain relief for all cables on the forklift terminal
• 5 V power supply for connecting an external scanner selectable via switch

Ignition function A brilliant idea

When mounting the forklift terminal on vehicles, the terminal can be switched on automatically depending on the ignition voltage or after a parameterized interval can be switched off automatically.

VMT9000 series vehicle terminals in the fifth generation
With its high-quality design and quality, the VMT9000 series stands in the tradition of the award-winning ADS-TEC operator panels. The terminal family and its multitude of features were developed on the basis of almost 40 years of industry experience specifically for the target markets of logistics and agricultural and construction machinery. The VMT9000 series is characterized by a particularly compact and at the same time extremely robust design in order to function reliably even in the toughest environments.

product properties

Sunlight readable
• Optimum readability under difficult visibility conditions
• Reliable use also outdoors

Touchscreen
• Choice between resistive and capacitive touchscreens
• Both touchscreen variants can be operated with gloves

Robustness
• Extremely shatterproof (IK08) and abrasion-resistant fronts
• IP66 certified
• Vibration and shock resistance according to class 5M3
• Resistant to a wide range of chemicals and UV radiation as well as the weather
• Screwless design for simplified cleaning

Power supply
• Wide-range power pack for the flexible connection of a 12 V, 24 V or 48 V power supply
• Voltage input range 9 - 72 V

Sensors & data security
• Automatic brightness adjustment
• Integrated proximity and acceleration sensor
• User identification via RFID
• Smart card-secured VPN tunnel and integration into the ADS-TEC IoT service platform Big-LinX®

Radio - WLAN, Bluetooth, WWAN and GPS
• Latest WLAN standards for optimal roaming behavior
• External antenna can be connected in the event of difficult transmission and reception conditions
• WWAN and GPS for outdoor applications
• Bluetooth for connecting scanners etc.

UPS
• UPS function for uninterrupted work, even if the forklift battery is replace
• UPS integrated in the interface cover and can therefore be easily retrofitted
• Bridges approx. 20 - 30 minutes runtime

Ignition function on vehicles
• Switching on the terminal using the ignition voltage
• When the ignition key is removed, the system is either blocked or shut down

software
X-Remote remote control via Ethernet

ADS-TEC has developed a remote protocol for real-time control of interlinked systems and processes, with which the user can remote control applications via mobile or permanently installed thin clients.

Secure connection in case of service With the >>Big-LinX® IIoT Client<< from ADS-TEC

Always be securely connected with the Windows-based client to ensure smooth operation. Secure connection via smart card secured VPN tunnel. Software, firmware and BIOS can always be kept up to date via the connection to the ADS-TEC IIoT service & maintenance platform Big-LinX.

ADS TEC Services

ADS-TEC Service Packages Extended Warranty in Basic, Silver and Gold

To cover technical failures, there is the option of purchasing an extended service when purchasing an ADS-TEC Industrial IT product. In this way, long-term protection against repair costs due to technical failures can be implemented.
