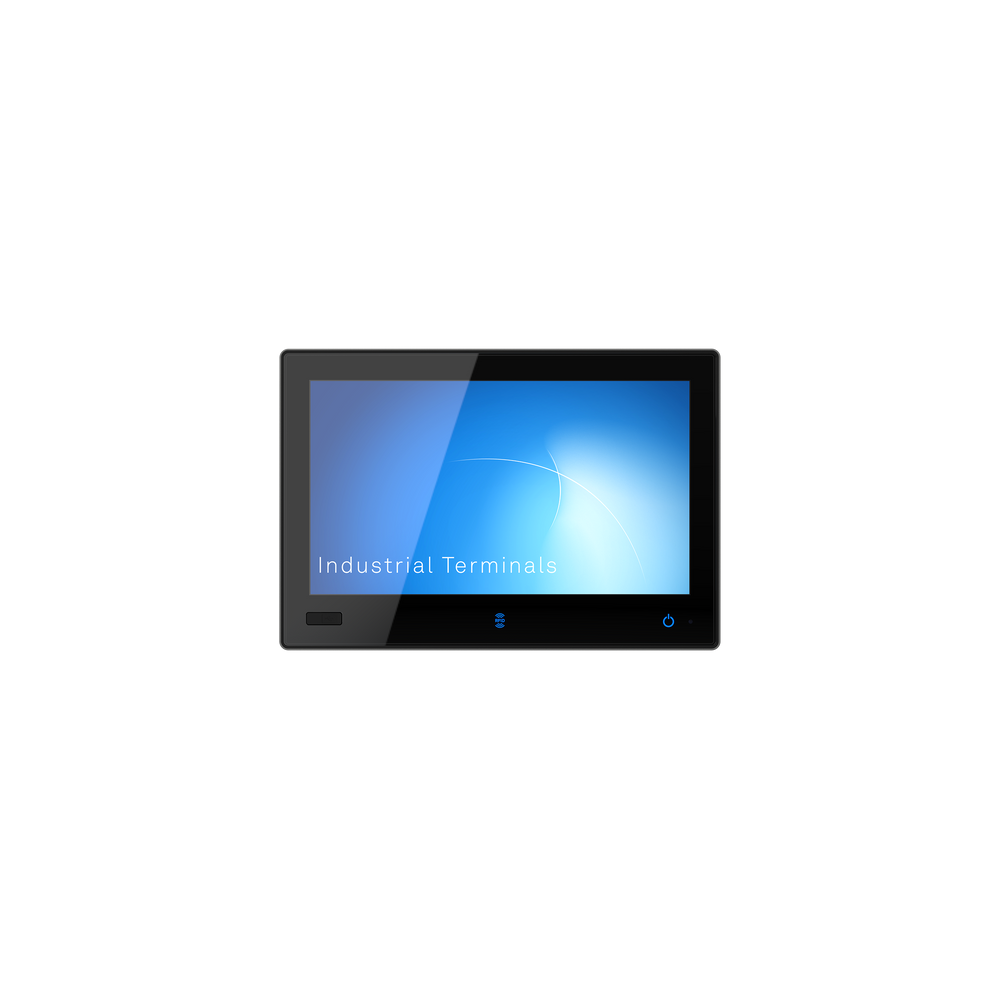

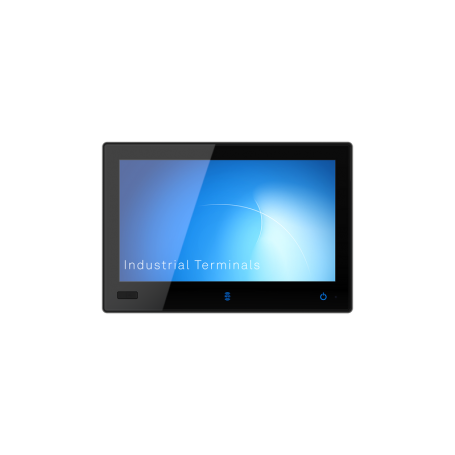

ADS-TEC MES9000 Basis 18.5" Full-HD, PCAP Multi-Touch, Intel Core i5, 24V DC

DVG-MES9019-015-BZ

ads-tec

DVG-MES9019-015-BZ

S-021-155933

New

MES9000 as an HMI panel PC impresses not only with its high performance and simple integration into the machine or system, but also with the outstanding user-friendliness of the large multi-touch display and the contemporary design.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

Length 465.00 Millimeter
Splinter protection No
On, off switch Yes
Portection rating IP65
Display size 18.5"
Width 310.00 Millimeter
Resolution Not specified
Height 80.00 Millimeter
Voltage (typical) 0.00 Volt
Touchscreen PCAP Multi-Touch
Input voltage range 24 VDC
Min. ambient temperature 0.00 Celsius
Operating system IGEL Linux, Windows 10 IoT Enterprise 2021 LTSC
Max. ambient temperature 40.00 Celsius
Voltage Range (Min.) 0.00 Volt
Brightness (cd/m²) 500
Voltage Range (Max.) 0.00 Volt
Power consumption (W) 0.00 Watt
Operation humidity not specified
CPU Intel® Core™ i5-8365UE 1,6 GHz
RAM 8.00 Gigabyte
Memory / Flash 128.00 Gigabyte
Analog Interfaces 1 x Smartcard-Reader für ADS-TEC Big-LinX, 1 x DisplayPort++ (1.2)
Ethernet interfaces 3 x Ethernet (10/100/1000 Mbit/s)
USB interfaces 4 x USB 3.1 Gen. 2
JMobile usable? No
