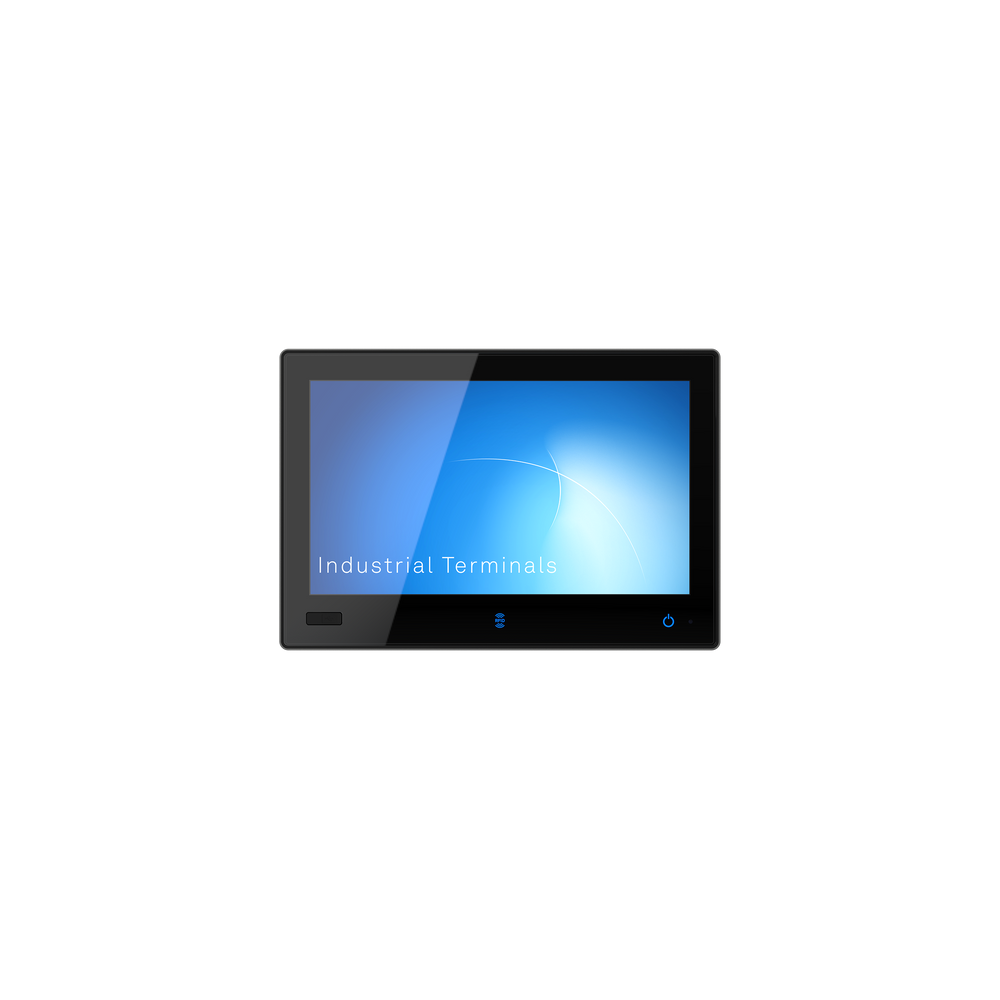

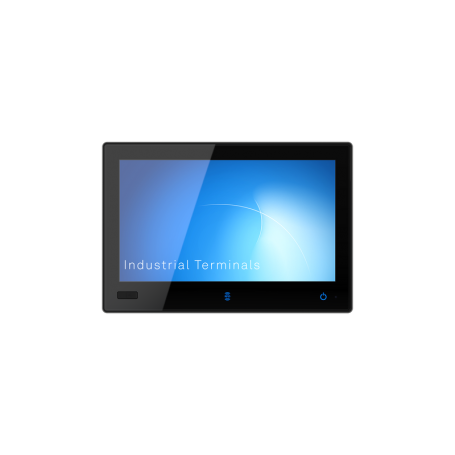

ADS-TEC MES9000 Basis 23.8" Full-HD, PCAP Multi-Touch, Intel Core i5, 230V AC

DVG-MES9024-010-BZ

ads-tec

DVG-MES9024-010-BZ

S-021-155938

New

MES9000 as an HMI panel PC impresses not only with its high performance and simple integration into the machine or system, but also with the outstanding user-friendliness of the large multi-touch display and the contemporary design.

More details

Prices are only visible for registered customers. Create an account now.

Data sheet

On, off switch Yes
Splinter protection No
Length 575.00 Millimeter
Display size 23.8"
Width 370.00 Millimeter
Portection rating IP65
Resolution Not specified
Height 80.00 Millimeter
Voltage (typical) 0.00 Volt
Touchscreen PCAP Multi-Touch
Input voltage range 230 V
Min. ambient temperature 0.00 Celsius
Max. ambient temperature 40.00 Celsius
Brightness (cd/m²) 250
Operating system IGEL Linux, Windows 10 IoT Enterprise 2021 LTSC
Voltage Range (Min.) 0.00 Volt
Voltage Range (Max.) 0.00 Volt
Power consumption (W) 0.00 Watt
Operation humidity not specified
Current consumption max. 0.00 Ampere
CPU Intel® Core™ i5-8365UE 1,6 GHz
RAM 8.00 Gigabyte
Memory / Flash 128.00 Gigabyte
Analog Interfaces 1 x Smartcard-Reader für ADS-TEC Big-LinX, 1 x DisplayPort++ (1.2)
Ethernet interfaces 3 x Ethernet (10/100/1000 Mbit/s)
USB interfaces 4 x USB 3.1 Gen. 2
JMobile usable? No
